2KW Diesel Air Heater Silencer Thermostat Caravan Trailers RV

Application:

motorhomes, campervans, caravans (also known as travel trailers and camper trailers), fifth-wheel trailers, popup campers and truck campers, Small Truck, Big Truck, Light Truck, Heavy Truck, Pickup, Van,Bus,Car,SUV, Boat, Forklift, Electric Tricycle, Engineering Vehicle, Yacht

Aslo Can be used indoor ,but the exhaust pipe needs to be installed outdoors.

Note:  Exhaust gas contains CO, exhaust pipes must be installed outdoors or outside your vehicle.

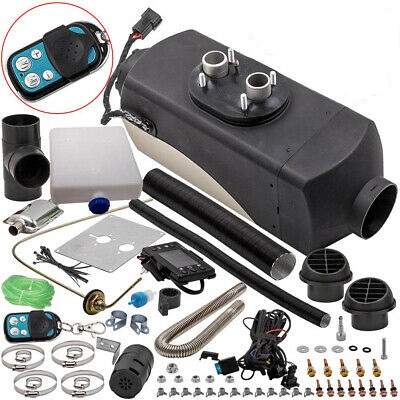

Packag included:

1 x Parking Heater

1 x LCD Switch

1 x Remote Control

1 x Exhaust Silencer ( for car use only)

1 x  Diesel Tank (10L)

1 x Main wiring Bundle

1 x T-Piece

1 x Oil pump

1 x Oil pump connection wire

1 x Filter

1 x Oil pipe

1 x Inlet air pipe (aluminium alloy, 50cm length)

1 x Exhaust pipe (stainless steel, 60cm length)

1 x Gasket

1 x Reducing tee

2 x Terminal

1 x Oil pump clip

1 x Inlet air pipe clip

1 x Exhaust pipe clip

2 x Inlet air pipe fixing clip

2 x Exhaust pipe fixing clip

6 x Oil pipe joint

2 x Oil pipe clip

4 x Washer

4 x Nut

4 x Self tapping screw

1 x Nylon cable ties

1 x Oil suction pipe

1 x Air inlet hood

1 x Metering oil pump
1x Manual

Specifications:

Heater Power: 2KW
Fuel Gasoline: diesel
Car Air Conditioning Type: Heating
Rated Voltage:12V
Fuel Consumption(L/h):0.14-0.35
Working Temperature of the Heater:-40℃~+50℃
Working Temperature of the Oil pump:-40℃~+40℃
Item Size: 340*115*115mm
Heater Color: Black & Compatible for White
Material: Metal & Plastic

Features:

1.Wide application.
2.ENERGY SAVING- The optimized frequency conversion ECU accurately controls the injection frequency of the oil pump, and controls the intake air amount with the precise speed to extend the service life of the heater.
3.Low fuel and power consumption, suitable for longer periods of operation.
4.More comfort through wide control range, quiet night-time operation.
5.Fully electronic microprocessor control.
6.Diagnostic system.
7.Power stage to cut heating times.
8.REDUCED NOISE- Effectively reduce noise through blower speed control, silent fan, silent oil pump. The silent fan sleeps peacefully, and the metering oil pump adopts an improved low frequency pulse with low vibration.
9.Low maintenance, easy to service.
10.Can be operated whilst on the move.
11.Fuel supplied from the vehicle's own tank (diesel only).
12.Small and compact design for easy and space-saving installation within the interior or even under the floor
13.Independent heating device: Blow out warm air independently without causing wear and tear or carbon deposits in the engine, which can extend engine life by 30%.
14.Keep constant temperature: the intelligent overheating sensor can prevent the heater from running dry.

15.Can eliminate the window frost.
16.Environmentally product, low emissions, low fuel consumption; heater exhaust emissions to meet euro IV engine emissions requirements.
17.Can dismantle to a new car when replace vehicle.
18.Volatile technology, by the ceramic ignition plug will fuel heating evaporated into gas, fast ignition, full combustion.
19. Qualification certificate to ensure your safe travel, CE(Europe) /RCM(Australia) /ABE(Germany)
20.Standard accessory.With a complete mounting kit - including all mounting screws, which means all installation kit and instruction are included. Making it easy to install and use.

Important Installation Note:

1.Try to rotate the impeller to ensure that it can rotate freely and smoothly. If it cannot rotate freely, you need to use a tool to adjust the gap of the impeller.
2.The heater should be directly connected to the power supply to ensure that the battery is above 80A, the power supply current is above 20A, and the voltage is 11.5~12.8V.
3.The intake pipe and exhaust pipe should not be bent too much to keep the ventilation smooth, and ensure that at least 10cm or 0.79in in front of the air inlet
4.When the heater is turned on for the first time, it needs to match with remote control and lead the oil to the main engine.
5.Please gently tear off the protective film on the top of the LCD screen before use.
6.The distance between the fuel pump and the machine should be 1.5~2m.(For split machine)
7.Please provide the machine with good quality diesel.
8.EXhaust pipes must be installed outdoors or outside your vehicle.
9.When assembling the machine, don't reverse the direction of the oil pump.
10.When installing the heater, it must be horizontally with the outlet facing down.
11.When the machine first started, because there was no diesel oil inthe tube, if themachine could not sense the oil in two minutes, itwould stop automatically.After the machine stops running, restart it.
12.When you turn off the heater, it will continue to run until there hasno fuel in it.Do not forcibly disconnect the power supply, or it will damage the machine.
13.Turn the fan on about 1.5min, and the oil pump starts to work.

Notice:

* Due to the manual measurement and different measurement methods, please allow 1-3cm deviation.
* Professional installation is highly recommended.

* For any needs please contact us.
* For safety, please stay away from flammable materials.
* Keep dry to avoid damage to accessories.
