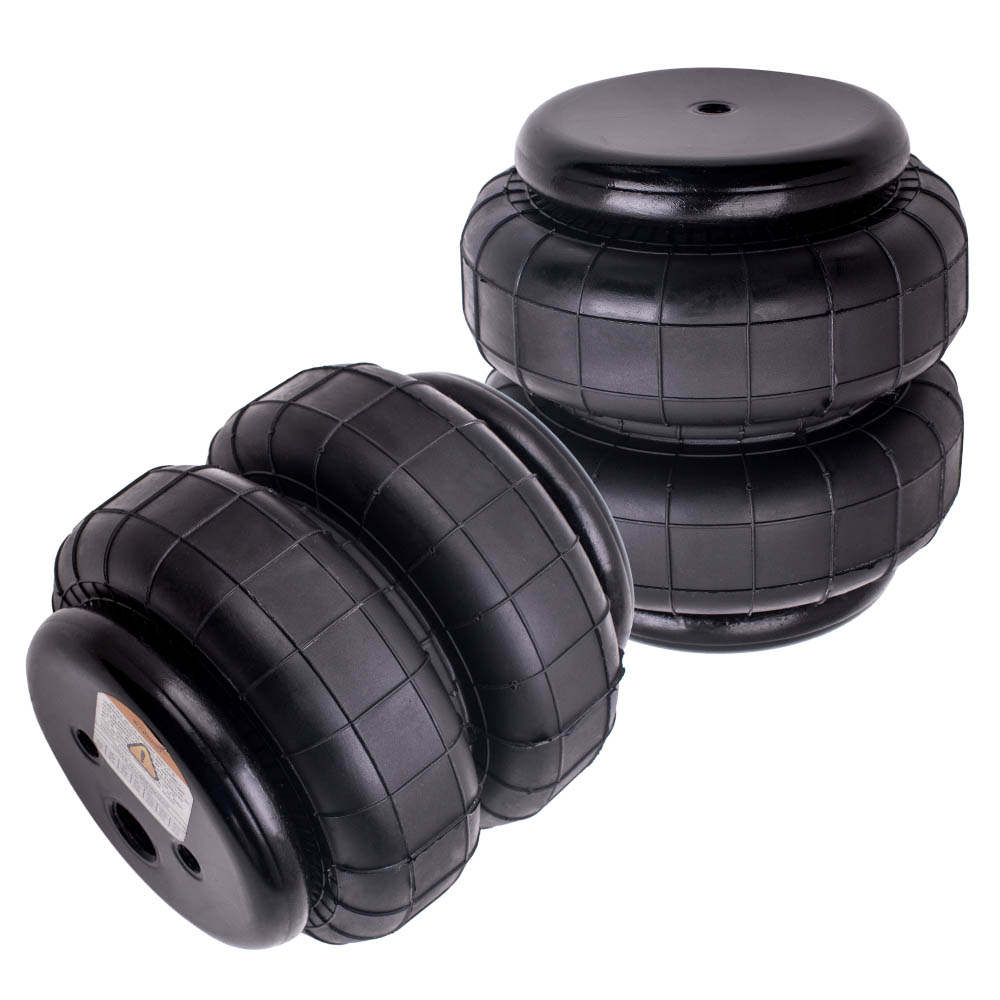

2x Universal Heavy Duty Air Bellow Bag Standard 2500 lb 1/2

Application

Compatible for Ford F150/F250, compatible for GMC Sierra, compatible for Chevrolet Silverado, compatible for Dodge Ram 1500 2500 3500, etc

Specifications

Min height: 65mm

Max height: 175mm

Working stroke: 110mm

Loading cap. at 3.0bar:1.48KN

Loading cap. at 7.0bar:6.23KN

Single air port size: 1/2NPT

Install hole size:3/8-16UNC

Top plate diameter:113mm

Air spring bag body diameter:145mm

Air spring bag capacity:  2500LBS

Warranty: one year

Adjustable: Yes

Greasable or Sealed: Sealed

Condition: Brand New Never Used Or Installed

Air Ride Spring Bag is made in steel braided cord reinforced ribs and multi-layer nylon belt cords bonded into the rubber. The all steel top and bottom plates have rolled crimp connections for unmatched durability

This front air suspension kit is suitable for Suspension Airbags with 1/2" NPT Single Port. Three Mounting Holes at its Bottom. Fits tightly to for your front air suspension strut.

Features

- Features with heavy duty double convoluted crimped design which allows safe and comfortable load capacity up to 2500 pounds.

- Hold up to 350 PSI

- Test more than 3 million times

- 100% Air Tightiness testing

- Gives the driver more control of ride

- Built to strict quality control standards

- Designed for Comfort Suspension
