T04E Turbo + Oil Line + Manifold Kit compatible for Nissan Patrol Safari Y60 Y61 TD42 TB42

Description

A turbocharger, (or turbo), is a turbine-driven forced induction device that increases an internal combustion engine's efficiency and power output by forcing extra air into the combustion chamber.
The objective of a turbocharger is to improve an engine's volumetric efficiency by increasing density of the intake gas (usually air) allowing more power per engine cycle.
Maxpeedingrods provide the highest quality Turbocharger.

Application

for 2.5L and up engines
for 3.2L-5.0L engines in twin turbo application, capable to 800HP

Specification

Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange: Standard T3 5 bolt downpipe flange pattern
Cooling Type: Oil Cooled
Wastegate: External Wastegate
Horse Power: Boost Horse Power up to 400+HP

Compressor:
Trim: 55
Inducer Diameter: 50.5 mm
Exducer Diameter: 76 mm
A/R: 0.5

Turbine
Trim: 73
Inducer Diameter: 65.5 mm
Exducer Diameter: 55.9 mm
A/R: 0.63

Oil Specifications:
OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm
OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm

Manifold Specifications:
Material: Cast Iron
Mounted type: Top mounted / High mounted
Turbo Flange: T3
Wastegate size: 38mm. You can plate it off if intending to use internally wastegated turbo (the blank plate is included)

Condition: 100% Brand New
Bearing Type: Floating Bearing
Warranty: one year warranty for any manufacturing defect

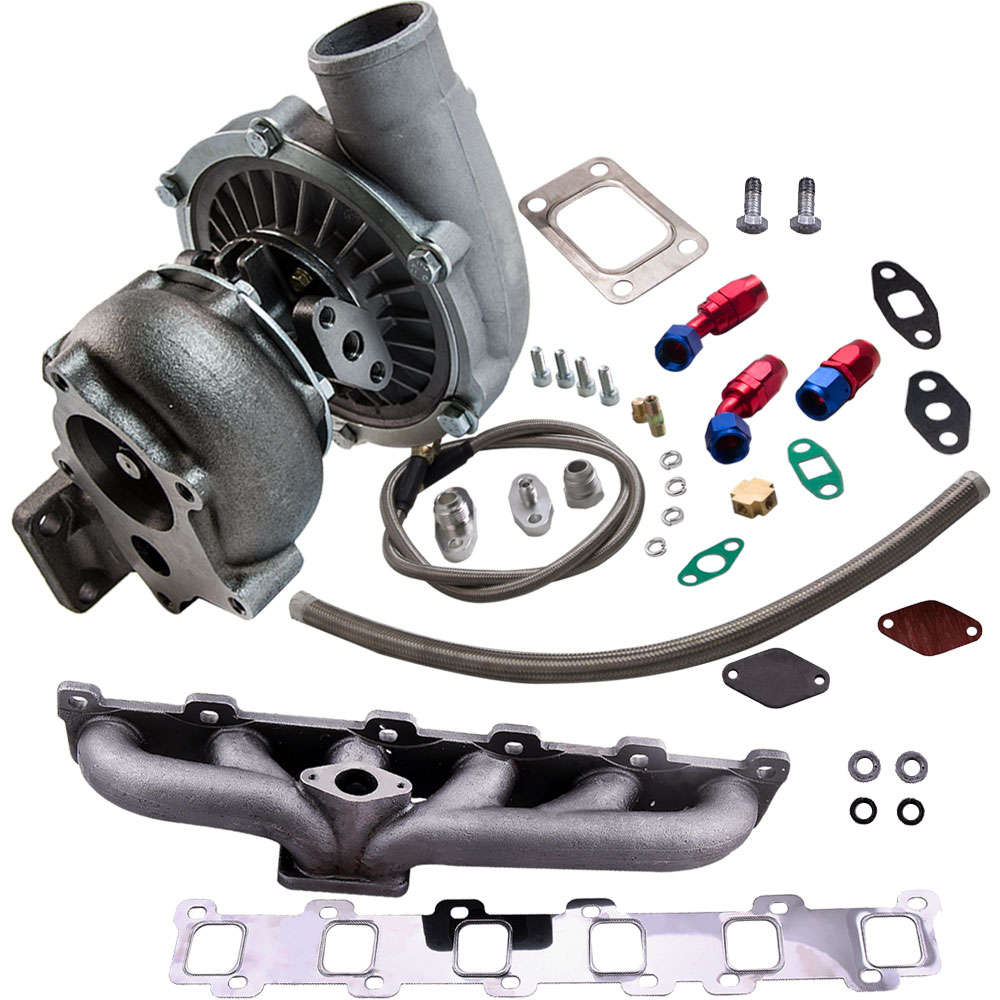

Package Includes:
1 x Turbocharger Kit
1 x Braided Turbo Oil Feed Line
1 x Braided Turbo Oil Return Line
1 x Manifold
(You will get exactly as shown in the picture above)

Note

Professional installation is highly recommended (No Instruction Included)
For any needs please contact us
This is universal application turbo, so modification might be required for some vehicles
