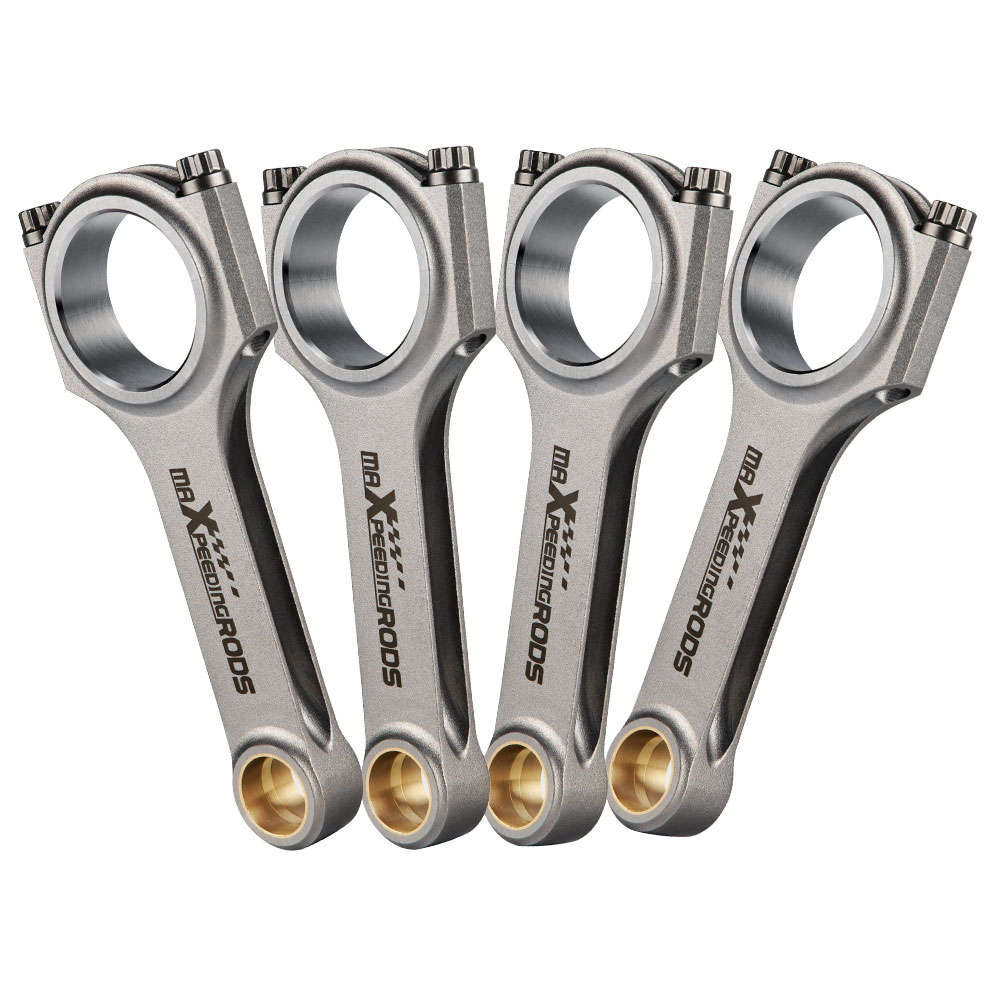

Compatible for Alfa Romeo nord 2000 ARP bolts 157mm 4340 EN24 4 Pieces Connecting Rod Rods

Description

A connecting rod, also called a con rod, is the part of a piston engine which connects the piston to the crankshaft. Together with the crank, the connecting rod converts the reciprocating motion of the piston into the rotation of the crankshaft. The connecting rod is required to transmit the compressive and tensile forces from the piston, and rotate at both ends.Maxpeedingrods provides connecting rods at the most competitive price and good quality!

Application

Compatible for Alfa Romeo Nord 2000 Turbo

Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
Learn more about CUSTOM SERVICE

Specification

TÜV Certification Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 4 Pieces a set
Bolts: Including ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: 3/8"
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 9000rpm
warranty:one year warranty for any manufacture defect

Dimensions

Center to center length: 157mm
Big end diameter: 53.7mm
Small end diameter: 22mm
Big end width: 26.75mm
Small end width: 23.7mm

Feature

* Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
* Designed and processed by CNC machine.
* All big and small ends are finished with SUNNEN honing machine
*Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
* 100% X-rayed, sonic tested and magnafluxed
*Multi-stage heat treated
* Shot peened to relieve stress
*Come with the bronzed bushing suitable for the floating piston pin
