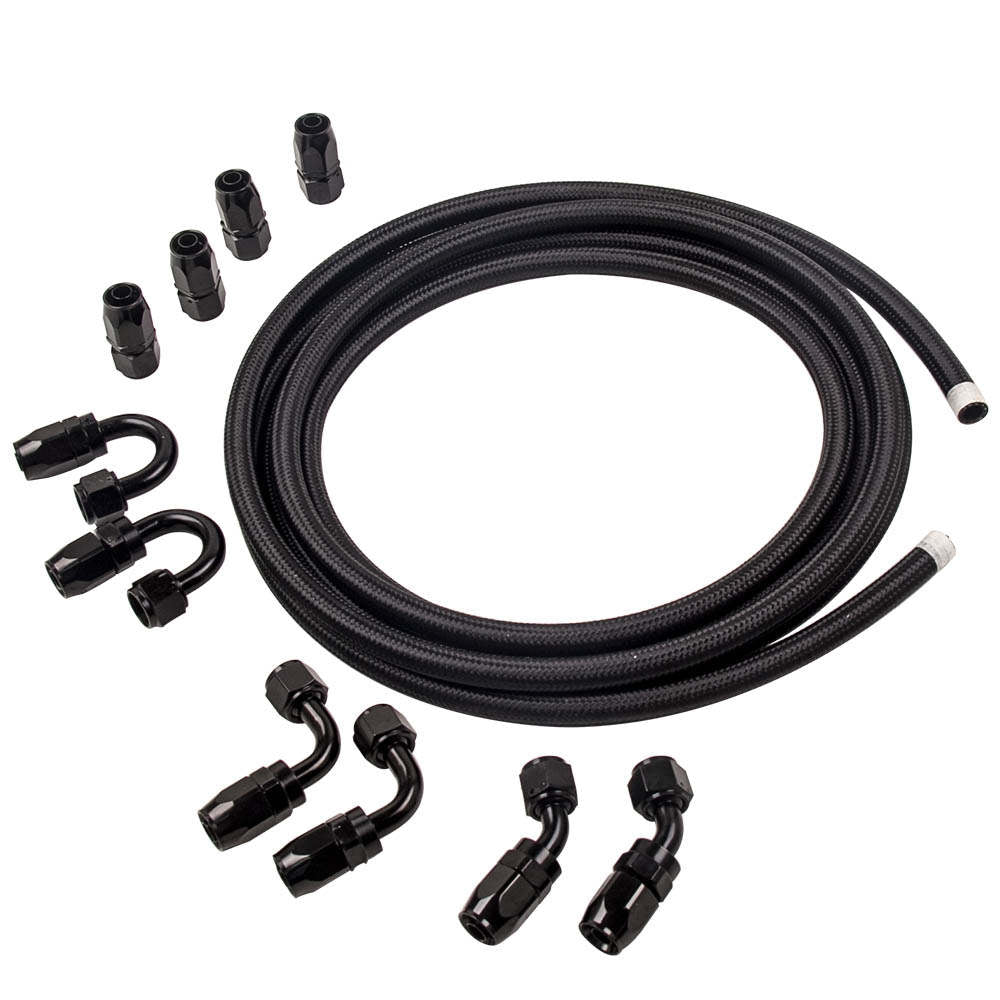

AN8 8AN 5M 16.4 Feet Braided Oil Fuel Line + Fitting Hose End Adapter Kit Black

Package includes

4 x AN-8 Straight Reusable Swivel Hose End
2 x AN-8 45 Degree Reusable Swivel Hose End
2 x AN-8 90 Degree Reusable Swivel Hose End
2 x AN-8 180 Degree Reusable Swivel Hose End
1 x AN-8 Nylon Braided Hose
Hose Length: 5M/16.4 Feet
Hose Diameter: 1.7cm
(You will get exactly the same as picture shows)

Specification

Fitting Material: Anodize T-6061 Aluminum Alloy
Fitting Size: AN -8 / JIC 8 - 3/4 x 16 UNF
Braided Hose: I.D. = 11.1mm approx - O.D. = 17.2mm approx
Material: Nylon Steel
Working Pressure: 500PSI
Bursting Pressure : 3000PSI
Minimum bending radius: 88.9mm
Temperature range: -40℃ to +160℃
Color: Black
Warranty: one year warranty for any manufacture defect
100% Brand New

Features

- Made of 3 Layers:
1.Inner Layer Material: Durable CPE synthetic rubber tube
2.Middle Layer Material:308 Stainless Steel Wire Mesh Sleeve
3.Outer Layer Material : High Quality Braided Nylon.
- CNC machined items
- Removable head for both push-on or twist-lock
- Polished and anodized for bright appearance and corrosion protection
- No leakage under high pressure and temperature

Note

- Professional Installation is Highly Recommended
- Installation Instruction is NOT Included
- If you have any question,please feel free to contact us
