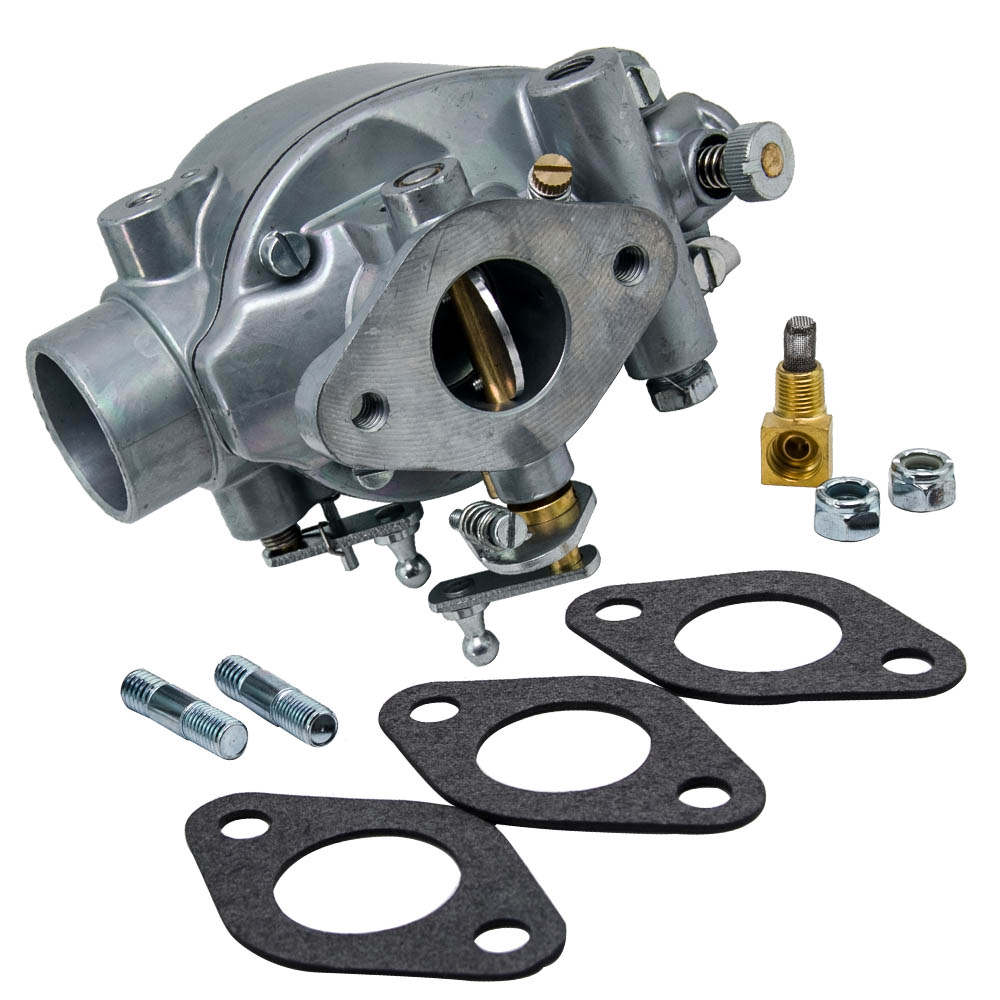

EAE9510D Carburetor w/ Gasket compatible for Ford NAA NAB Tractor 600 700 B4NN9510A TSX580

Application

Compatible for Ford Tractor EAE9510C B2NN9510A

Compatible for Ford Tractor models: 600, 700 (1955-1957) with 134 CID Gas Engine

Compatible for Ford Jubilee NAA NAB 600 620 630 650 660 700 740 800 850 Tractor

Compatible for Marvel Schebler TSX428

Compatible for Zenith 0-13880 13880

Note：

*EAE9510C Carb can not replace for EAE9510D TSX580, they are totally different

Specification

Type: Automatic choke

Input voltage: DC 12V

The mounting stud measure 2-1/4" center to center

The throttle bore throat size measures 1-1/16" diameter

The choke air horn (inlet) measures 1-5/8" OD

The fuel inlet measures 1/8" NPT

Material：Heavy duty  Aluminum alloy construction

Instructions: Not included

Warranty：one year

Package dimensions: 17*13*15cm

Weight: 1.8kg

Package Contents:

1x Carburetor with gasket , bolts

Note：

*Please allow 1-2mm error due to manual measurement.

*Please check the measurement information of the carburetor and  confirm your old part number and car engine to ensure you are ordering the correct part.

Replaces Part Numbers: B4NN9510A,  TSX428,  EAE9510C

Feature

1 Sturdy Aluminum Construction：Made of high-quality aluminum alloy, the carburetor can stand high heat, pressure, corrosion, acid, and alkali, durable and sturdy in its structure, polished surface ensures long time use.

2 Fuel-Efficient & Strong Power：The integrated carburetor kit works excellent in fuel consumption, greatly improving fuel utilization, reducing fuel costs, and saving more energy, thus effectively enhancing the power of the engine.

3 Fast Start & Steady Speed：With strong and stable power, the carburetor also benefits the start of the engine, it helps to steady the speeds and offer sufficient power in speeding up, dramatically improving the engine performance.

4 Fully Tested & Assembled：From the overall structure to every small part, the carburetor has been constructed with high precision, every component is fully tested and adjusted, organically assembled into one powerful carburetor.

5 Made for Performance:Improve engine performance,Low fuel consumption, Start fast stable idle speed ，allowsing you to get a better driving experience and maneuverability, allowing you to maintain control on bumpy roads.

Notice

* The oil channels of carburetors will be blocked without cleaning.Please clean up the oil channels and air filters as well as use the clean fuel before installing the carburetors.

* Professional installation recommended/We recommend that this be installed by a qualified mechanic with experience doing this type of work.  Warranty does not cover any failure that is a result of improper installation, improper break in, improper tuning, or misuse. (No Instruction Included)

* For any needs please contact us.

* Our carburetors are adjusted to original specifications.Due to the age and wear of old tractors,you may need to adjust mixture,idle,and float adjustments.
