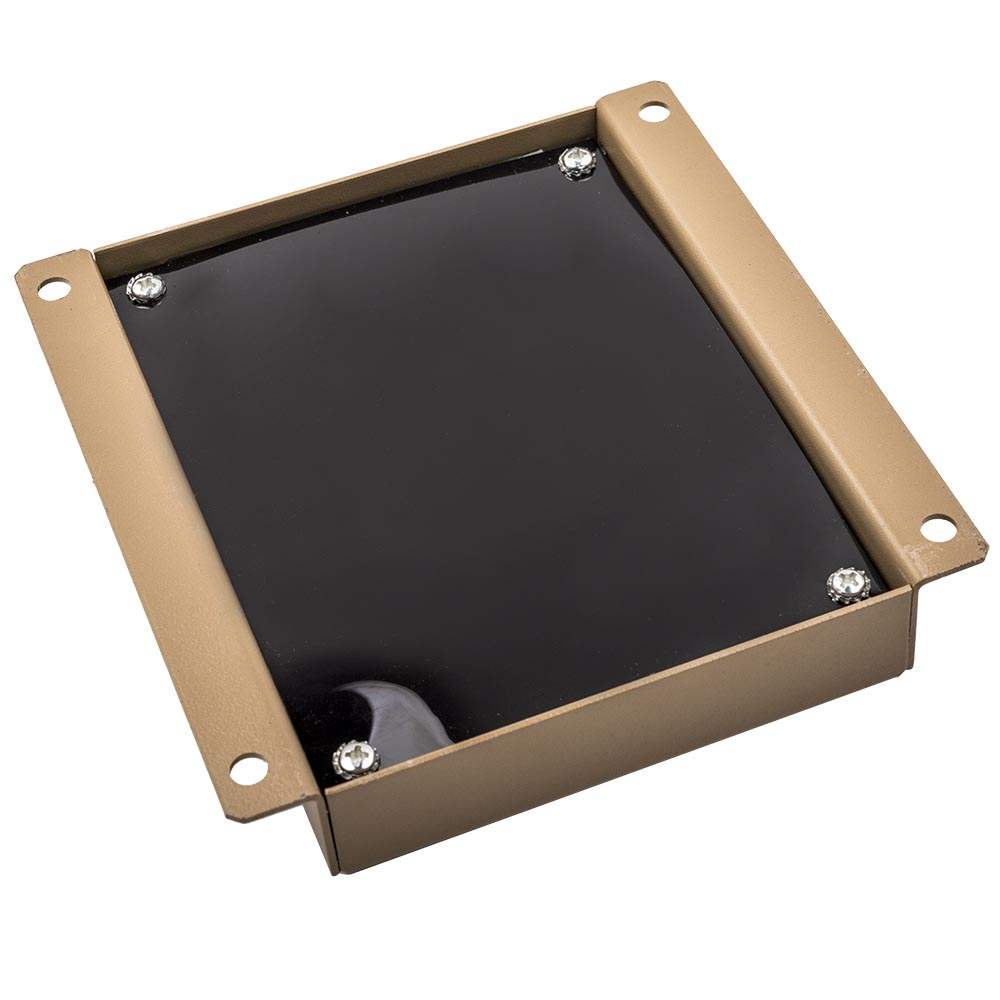

For ESD5111 ESD5500E  Engine Speed Controller Engine Motor Speed Regulator

Specification

1. Model: for ESD5111
Speed control unit: IEZ68-842
Speed stability: better than ±0.25%
Speed range: 1KHz-7.5KHz
Thermal stability: up to ±1%
IDLE adjustment: 160±20Hz-95% of rated speed
DROOP adjustment: Minimum position is 15Hz ± 6Hz / load current change per ampere
Maximum position 400Hz ± 75Hz / load current change per ampere
External speed adjustment: ±200Hz (external 1KQ)



2. Model: for ESD5500E
Speed range: 1KHz ~ 7.5KHz
Thermostability: Max.+1%
IDLE adjustment: 160±20Hz ~ 95% of rated speed
DROOP adjustment: The minimum position is 15Hz +6Hz/ load current change per ampere
The maximum position is 400Hz +75Hz/ load current change per ampere
External speed adjustment:±200Hz (external 1KQ)
Weight: Approx.600g/ 21.2oz

OEM / Part Number

for ESD5111 , for ESD5500E

Note

Please allow slight error due to manual measurement. Thanks for your understanding.
