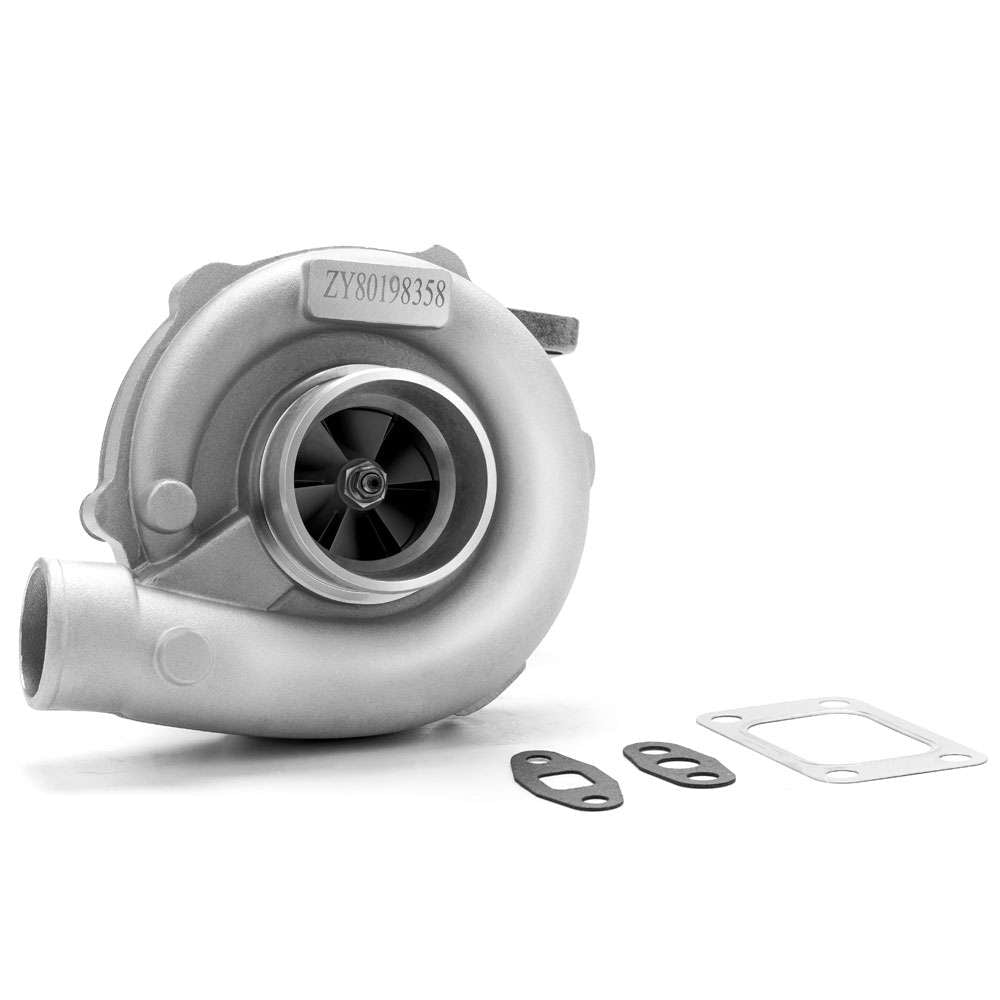

T3 T4 T04E Turbo Turbocharger 400HP .57 A.R compatible for Nissan FORD DODGE VW seat skoda

Description

Looking to boost your car's power? Is your car's original turbocharger not performing well, or does it need replaced? Maxpeedingrods stocks all the best quality turbochargers, turbo parts to give your car the power, performance and reliability you deserve. Maxpeedingrods aftermarket replacement turbo provide the perfect solution by delivering a high-quality turbo at a budget-friendly price

Application

This item fits: Universal Application.
Compatible for 1.5L to 2.5L any 4/6 cylinder engine up to 400HP
Maximum 18PSI

Specification

Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange: Standard T3 5 bolt downpipe flange pattern
Cooling Type: Oil Cooled
Wastegate: External Wastegate
Compressor:
Trim: 48.1
A/R: 0.5
Inducer: 52.7
Exducer: 76
Turbine:
Trim: 74.2
A/R: 0.57
Inducer: 64.8
Exducer: 55.8
Turbine exhaust outlet :
Turbine exhaust inlet：45mm/87mm
Compressor outlet：42mm(inside diameter)、52mm(Outer diameter)
Compressor inlet：68 mm(inside diameter)、77mm(Outer diameter)

Feature

- Turbine housing：Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius.

- Steel Turbine Wheel：Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius.

- Compressor housing：ZL104 aluminum.

Compressor wheel/blades:

Cast Aluminium with good gas tightness and corrosion resistance.

- 100% BALANCING TEST, This Turbocharger you will receive has been balanced using the VSR machine technology. Through the comprehensive and high-precision static

- High Quality Material.

- Boost Engine Horsepower Significantly.

- Increase Engine Power and Torque Outpout.

- Maintain Combustion Chamber Pressure and Fuel/Air Load.

- Built for Durability and Strength.

Note

* 100% Brand New
* Professional Installation is Highly Recommended， Instruction is NOT Included
* Additional parts will be needed for a complete installation. Please consult professional turbo installer for details.
* Does NOT have a internal wastegate so you must have a external wastegate on your manifold.
