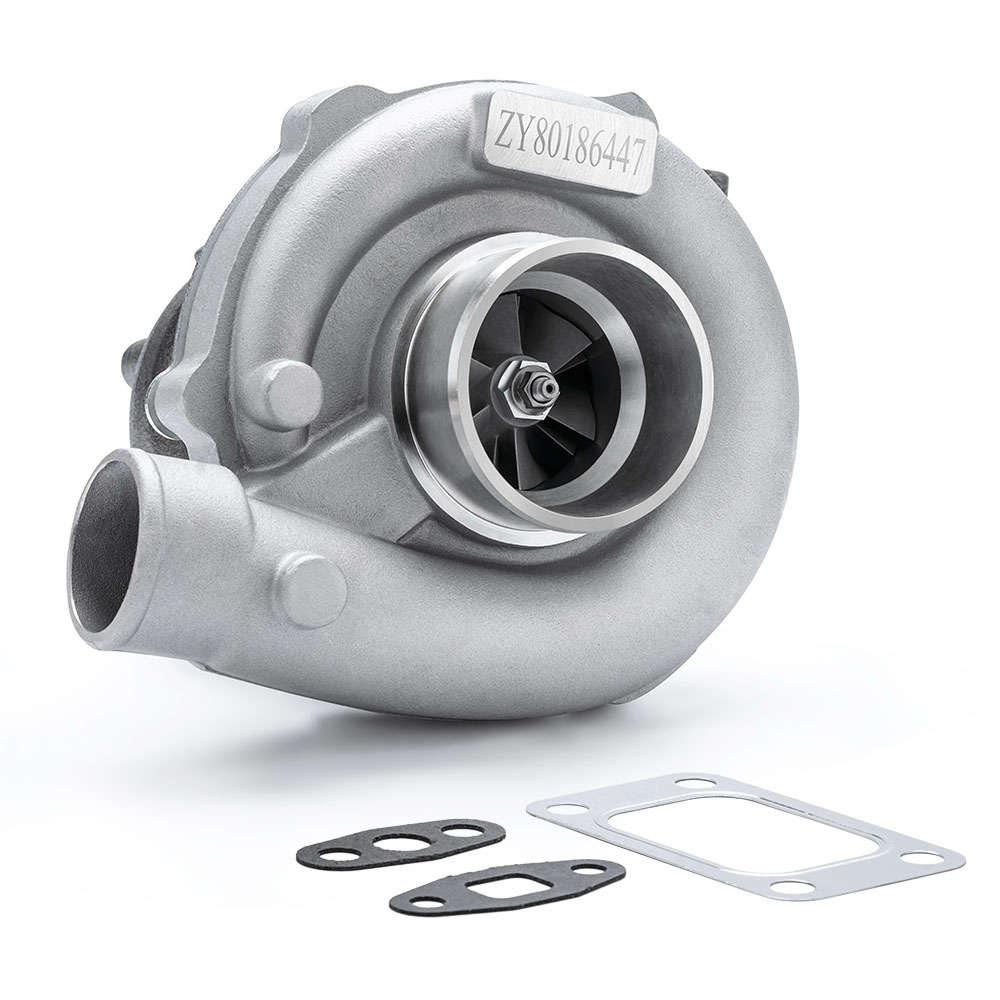

T3 T4 T03 T04 T04E T3T4 Turbocharger .63 A/R Turbo Turbine 5 Bolts Flange 400HP 5 Bolt Flange Uni Turbo

Application

This item fits: Universal Application.
Compatible for 1.5-2.5L any 4/6 cylinder engine, Horse Power Boost up to 400BHP
Maximum 18PSI

Specification

Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange: Standard T3 5 bolt downpipe flange pattern
Cooling Type: Oil Cooled
Wastegate: External Wastegate
Compressor
Trim: 48.1
A/R: 0.5
Inducer: 52.7
Exducer: 76
Turbine:
Trim: 74.2
A/R: 0.63
Inducer: 64.8
Exducer: 55.8
Turbine exhaust outlet :
Turbine exhaust inlet：44.5mm/81mm
Compressor outlet：45mm(inside diameter)、53mm(Outer diameter)
Compressor inlet：68 mm(inside diameter)、72mm(Outer diameter)

Features

-High Quality Material, Cast Housing with Durable Steel
-Boost Engine Horsepower Significantly
-Increase Engine Power and Torque Outpout
-Maintain Combustion Chamber Pressure and Fuel/Air Load
-Contructed with High Quality Material
-Built for Durability and Strength

Advantages

1、100% BALANCING TEST，This Turbocharger you will receive has been balanced using the VSR machine technology.
2、All of the materials we use are the best materials,and we believe that only the best materials will guarantee the life of the turbo.
Turbine Wheel： the special K418 alloy to achieve stability under high temperatures up to 900 degrees Celsius, and never use K13 Inconel alloy.
Turbine housing :Ductile iron QT450-10 can withstand temperatures up to 700 degrees Celsius.
3. Compressor wheel/blades:
- Cast Aluminium with good gas tightness and corrosion resistance.
4. Warranty: one year warranty for any manufacturing defect.

Note

*100% Brand New.
* Professional Installation is Highly Recommended.
* Additional parts will be needed for a complete installation. Please consult professional turbo installer for details.
* Does NOT have a internal wastegate so you must have a external wastegate on your manifold.
