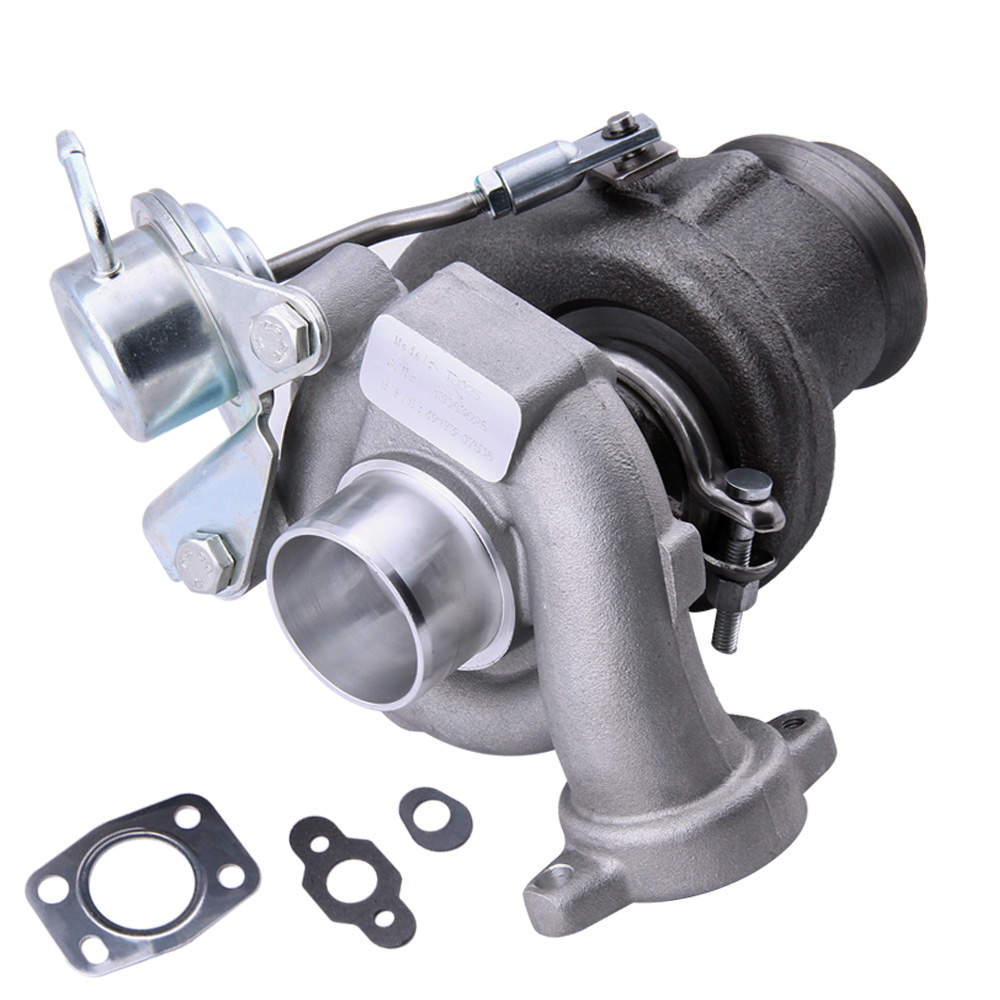

Turbocharger compatible for Peugeot 207/307/308 Expert 1.6HDI 90HP TD025 49173 Turbo

Application

(Important notice: please make sure your engine is not 110hp or 109ps, this item does not fit 110hp or 109ps engine)
for CitroenC 3 1.6 Hdi1.6LDV6B DV6ATED42005 -
for CitroenC 4 1.6 Hdi1.6LDV6ATED42005 -
for CitroenJumpy 1.6 HDi 1.6LDV6B DV6ATED42005 -
for CitroenXsara 1.6 HDi 1.6LDV6B DV6ATED4 2005 -
Compatible for FordFiesta VI 1.6 TDCi1.6LDV6ATED42005 -
Compatible for FordFocus II 1.6 TDCi1.6LHHDA2005 -
Compatible for FordFusion 1.6 TDCi1.6LDV6ATED42005 -
Compatible for Peugeot 207 1.6 Hdi1.6LDV6ATED42005 -
Compatible for Peugeot 307 1.6 Hdi1.6LDV6ATED42002 -
Compatible for Peugeot 308 1.6 HDi FAP1.6LDV6ATED42007 -
Compatible for Peugeot Expert 1.6 HDi FAP1.6LDV6B DV6ATED42007 -
Compatible for Peugeot Partner 1.6 Hdi1.6LDV6B DV6ATED42005 -

Part & OEM Number

Turbo Part Number & OEM Number:
49173-0750849173-0750749173-0750649173-0750449173-07503
49173-0750249173-0752249173-0751649173-07527 49173-07528
49173-07513 , 49173-07514 , 49173-0751749173-07518 , 49173-07523 , 49173-0752449173-07526 , 49173-07527
54359707000 , 5435 970 7000 , 5435-970-7000 54359887000 , 5435 988 7000 , 5435-988-7000
0375K5 , 0375Q2 , 0375Q3 , 0375N50375J0 , 0375Q5 , 0375Q4 , 0375N01684949 , 1335262 , 1441254 , 14798411523337 , 71793889 , 71793891 , 717942299682881380 , 9685293080 , 96576037809670371380 , 9657530580 , 96623710809682881780 , 3M5Q6K682DD , 3M5Q6K682DE3M5Q6K682DC , 3M5Q6K682DA , 3M5Q6K682DB3M5Q-6K682-DD , 3M5Q-6K682-DE , 3M5Q-6K682-DA3M5Q-6K682-DB , 3M5Q-6K682-DC
OE confirmation:
To identify your turbocharger, you must know the original part number of the turbocharger manufacturer. It is usually engraved on a plate or simply knocked out on the compressor housing.
It is also possible to search for the original manufacturer's number (OEM, OE) of the vehicle in the catalog.
Part Number. This is the original turbocharger number, the number that is provided directly by the turbocharger manufacturer (Garrett, BorgWarner, IHI, compatible for Mitsubishi and so on).
OEM or shortly OE (original equipment manufacturer). This is the vehicle manufacturer number (Mercedes, compatible for BMW, Audi, Ford, Toyota, Volvo, VW, and so on).
Both numbers are usually, but not always, present on the turbocharger. In our catalog both numbers are stored, but high priority is given to the turbo manufacturer number (Part Number). We recommend that you search for a suitable turbocharger for this particular number.
STEP ONE: Clean the plate or casing. It is very difficult to see the number, so the area needs to be washed or cleaned with a cleaner.
STEP TWO: Determine the original turbocharger number. Each brand of the turbocharger has its own number. Here are a few examples (select the manufacturer of your turbocharger).

Specification

Turbo Model：TD025
Engine Code：DV6ATED4/ DV6B / DV6UTED4
Turbo Type: VNT variable geometry turbo
Actuation: Vacuum
Cooling Type: Oil Cooling
Bearing Type: Journal Bearing / Floating Bearing
Thrust bearings: 270 Degrees
Hosepower: Up to 90HP
Condition: Brand New
Warranty: one year warranty for any manufacturing defect
Accessories: You will receive the parts exactly as shown in the picture above.

Feature

1. OEM-quality and size with little modification
2. Turbine housing uses cast iron withstand temperatures up to 700
3. Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900
4. Cast aluminium blades with good gas tightness and corrosion resistance
5. The volute is made of nodular cast iron, which can withstand 700 degrees high temperature, and its tensile strength is as high as 450MPa.
6. 100% BALANCING TEST:
This Turbocharger you will receive has been balanced using the VSR machine technology.

Note

- Please confirm your original turbo PART NUMBER before Purchasing
- Professional installation is highly recommended (No Instruction Included)
- For any needs please contact us
