GT2871 GT2860 SR20 CA18DET Upgrade Turbo Tubocharger 350HP 0.6 A/R 0.64 A/R 5-Bolt Flange Universal Oil+Water Cooling

Description

Are you trying to put together a cost effective turbocharger system for your vehicle? You should know a turbocharged car has about 20-40% more total power than a non-turbo car of the same year, make and model. Well, Maxpeedingrods GT2871 universal turbocharger is excellent for single turbo applications for 1.5-2.0L engine. Don't hesitate to get a turbo to boost your car's power.

Application

Universal for Turbo Manifold with T25 Flange(T28 Flange can be converted to T25 Flange, Adrapter is needed).
Perfect for all 1.5L-2.0L engine，for all 4 cylinder
Horse Power: Boost Horse Power up to 350BHP

Specification

Exhaust Inlet (Turbo Manifold) Flange: Standard T25 Flange
Exhaust Outlet (Downpipe) Flange: 5-Bolt
Turbine Trim: 76
Turbine A/R: 0.64
Turbine Inducer Diameter: 53.8mm
Turbine Exducer Diameter: 47mm
Compressor Trim: 48
Compressor A/R: 0.60
Compressor Inducer Diameter: 49.2mm
Compressor Exducer Diameter: 71 mm
Bearing Type: Wet Float
Cooling Type: Water + Oil
Internal Wastegate: Yes
Warranty: one year for any manufacture defects
Oil Restrictor: Yes
Oil Restrictor size：inside diameter 2mm
Oil Thread Size: M8*1.25
Water Thread Size: M14*1.5
Horse Power: Boost Horse Power up to 350BHP

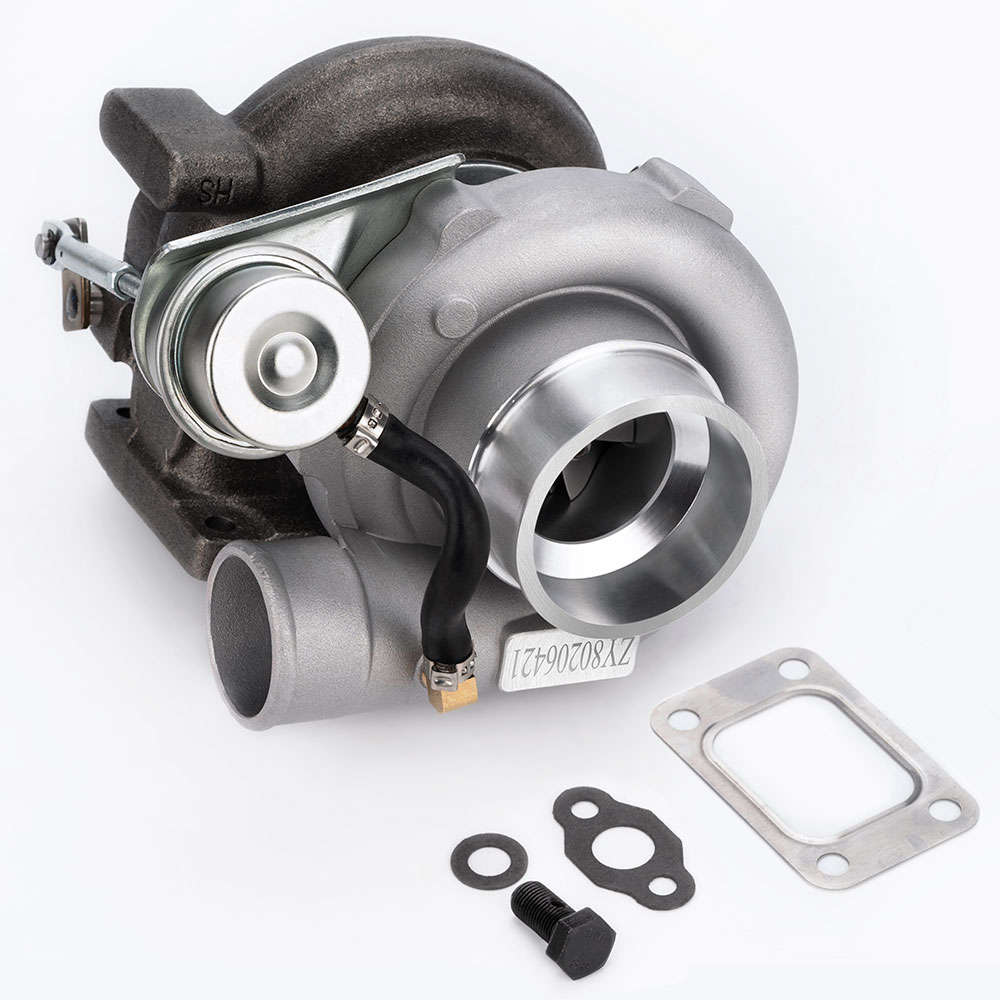

Accessories: You will get exactly as shown as picture above

Feature

1)Product Material：

1. Turbine housing：Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius.

2. Steel Turbine Wheel：Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius.

3. Compressor housing：ZL104 aluminum.

4. Compressor wheel/blades:

- Cast Aluminium with good gas tightness and corrosion resistance.

5. Capable of Boosting Horse Power up to 350 BHP.

2)Product Feature:

1. Excellent Design:

Excellent Design And Processing and durable floating bearing structure

2. Durable:

Water-cooled/oil-cooled structure extends turbine service life.

3. 100% BALANCING TEST:

This Turbocharger you will receive has been balanced using the VSR machine technology.

Installation Suggestions

About Turbo failure:
The 6 most common failures are:
1. Oil starvation
2. Oil contamination
3. Impact damage
4. Blocked Engine breather
5. Over speeding of shaft and wheel
6. Hot shut down
Common causes of turbocharger failure:
1. Improper Lubrication / Lack of maintenance
2. Foreign object damageOverspeeding
3. Excessive oil pressure
4. High mileage engine
5. Engine Lacks Power
The following situation indicate the turbo failure:
1. Black Exhaust Smoke
2. Excessive Engine Oil Consumption
3. Blue Exhaust Smoke
4. Turbo Noisy
5. Cyclic sound from turbo
6. Oil Leak from compressor seal
7. Oil Leak from turbine seal
highly suggest you find professional mechanic to help you install it, here are somecheck list before installation.
1. Replace oil supply lines and fittings. These lines often become plugged with decomposed oil which restricts oil flow and drainage.
2. Do not used silicone or thread tape
3. Make sure all openings to turbo are open and not plug or capped off.
4. Shut off fuel or disable ignition and crank the engine for at least 15 seconds or until oil pressure is raised
5. Allow engine to fast idle (1,000 RPM) for 3 - 5 minutes to compatible for Seat turbo seals
6. Always let engine idle for 3 -5 minutes before shut down, otherwise the turbo will continue to spin without oil lubrication and pressure
7.When changing oil, be sure to prime oil filter

Notice

* Please check the specifications carefully before buying. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles
* Professional installation is highly recommended(No Instruction Included)
