GT30 GT3037 GT3076 Turbo Turbocharger 0.82 + Oil Drain Return Oil FEED Line CAC

Application

Perfect for all 6 / 8 cyl 3.0L-5.0L engine

Specification

Horse Power: Capable of Boosting Horse Power up to 500HP
Cooling Type: Water + Oil Cooled
Exhaust (Turbo Manifold) Flange: Standard T3 Flange
Exhaust (Downpipe) Flange: Standard 4-Bolt
Turbine Trim: 51
Turbine Inducer Diameter: 84 mm
Turbine Exducer Diameter: 60mm
Turbine A/R: 0.82
Compressor Trim: 56
Compressor Inducer Diameter: 57mm
Compressor Exducer Diameter: 76.2 mm
Compressor A/R: 0.6
Bearing: Journal Bearing
Warranty: one year
OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm
OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm

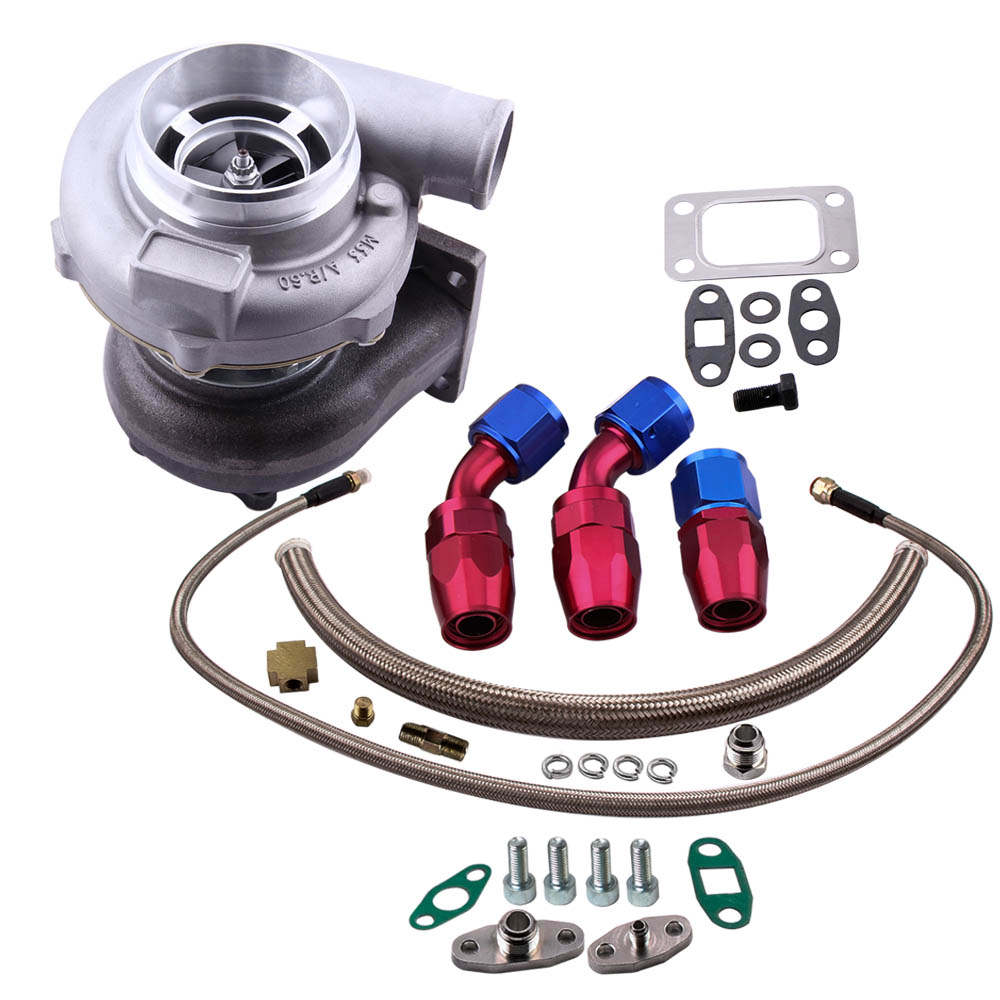

Accessories: You will get exactly as shown in the picture above
Condition: 100% brand new
Warranty: one year warranty for any manufacturing defect

Notice

* Please confirm your old part number matches up with one of the part numbers above
* This is universal application turbo, so modification might be required for some vehicles
* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us.
