GT30 GT3037 Turbo T3 .60 A/R Water Cool + 2.5 inch 63mm Intercooler Pipe Piping Kits

Application

Perfect for all 6 / 8 cyl 3.0L-5.0L engines

Specification

TurboHorse Power: Capable of Boosting Horse Power up to 500BHP
Cooling Type: Water + Oil
Turbine Trim: 74.2
Turbine Inducer Diameter:  64.8mm
Turbine Exducer Diameter: 55.8mm
Turbine A/R: 0.82
Compressor Trim: 48.1
Compressor Inducer Diameter: 52.7mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.6
Bearing: Journal Bearing
Warranty: one year
Internal Wastegate: No

Piping Pipe Kit
Pipe Thickness: 1.8mm
Pipe length: 18''
100% brand new  Never been tried or installed.
100% quality assurance tested
Made out of high quality of 6061 aluminum Manual polishing finished

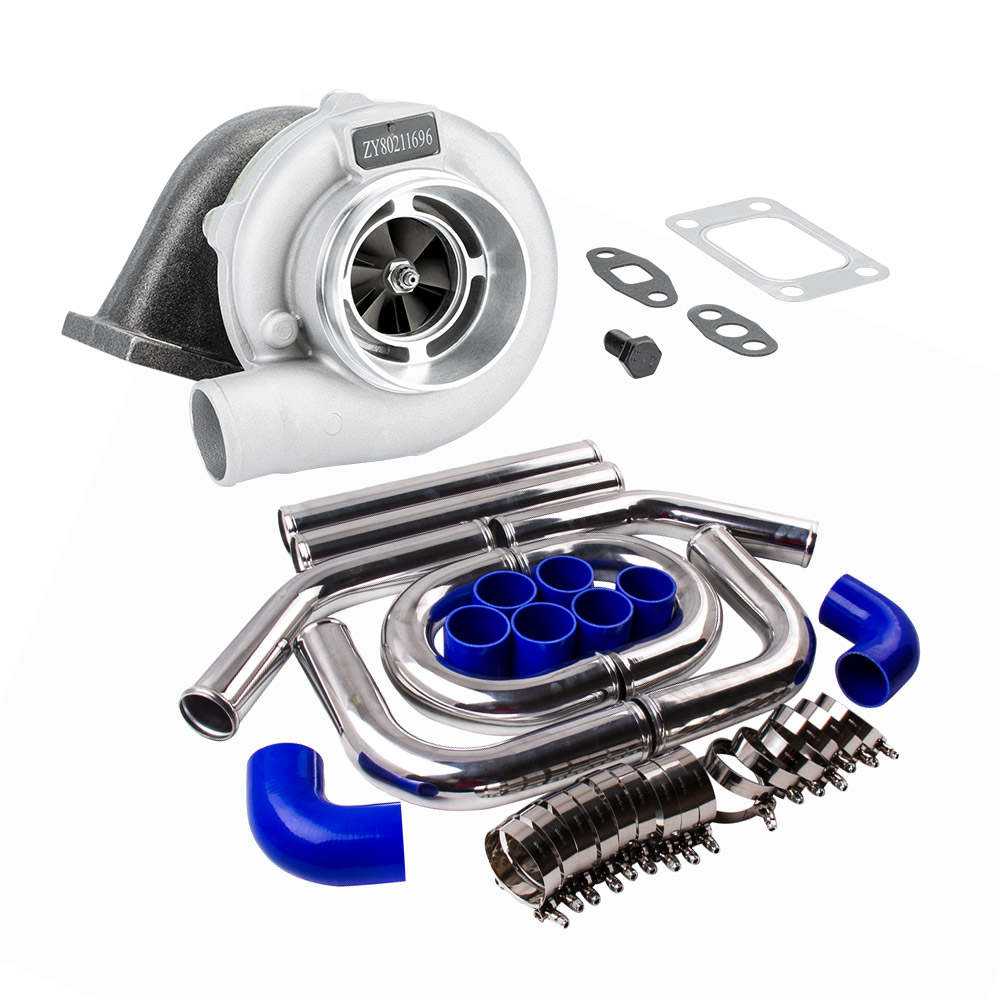

Package Including
2x 90 Degree Aluminum Pipe 2.5"
2x Straight aluminum pipe 2.5"
2x 135 Degree Aluminum Pipe×2 2.5"
2x U Aluminum Pipe×2 2.5"
6x Straight Silicon Hose 2.5" (Blue )
2x 90 Degree Silicone Hose×2 2.5"(Blue )
16x Clamps 2.5"
1x Turbo and gaskets

Notice

* Please check the specifications carefully before ordering. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles
* Professional installation is highly recommended (No Instruction Included)
