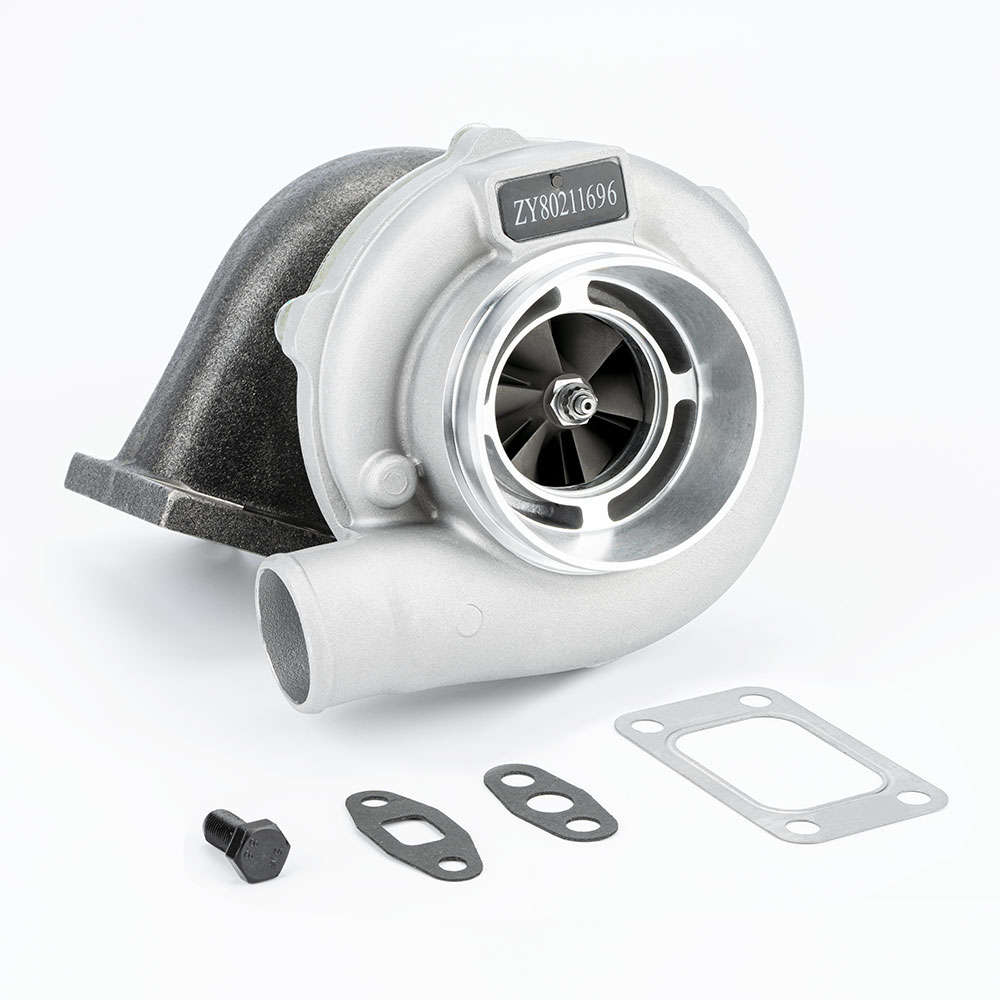

GT3076R GT3037 GT30 4-BOLT Flange 500HP Turbo Charger 0.6 A/R 0.82 Turbine

Description

The GT3037 Turbocharger is a large turbo capable of generating 500 HP, depending on application and with the correct tuning. The GT3037 is generally used for larger displacement engines of 3.0L and up, since these types of engines can produce enough exhaust volume to push the GT3037.

Application

Perfect for all 6 / 8 cyl 2.5L-3.0L engines
Horse Power: Boost Horse Power up to 500BHP

Specification

Horse Power: Capable of Boosting Horse Power up to 500BHP
Cooling Type: Water + Oil
Exhaust Inlet (Turbo Manifold) Flange: Standard T3 Flange
Exhaust Outlet (Downpipe) Flange: Standard 4-Bolt
Turbine Trim: 74.2
Turbine Inducer Diameter:64.8
Turbine Exducer Diameter: 55.8
Turbine A/R: 0.82
Compressor Trim: 48.1
Compressor Inducer Diameter: 52.7
Compressor Exducer Diameter: 76
Compressor A/R:0.6
Bearing: Journal Bearing
Warranty: 2 years warranty for any manufacturing defect
Internal Wastegate: No

Features

1. Turbine housing：Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius.

2. Steel Turbine Wheel：Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius.

3. Compressor housing：ZL104 aluminum.

4. Compressor wheel/blades:

- Cast Aluminium with good gas tightness and corrosion resistance.

Installation Suggestions

We highly recommend you make sure the points below before installing:
1.Replace the air filter: if the if the air filter is not replaced may cause the compressor wheel damage.
2.Replace the engine oil: Because floating bearing and turbocharger will be damaged by impurities in the old oil.
3.After large overhaul, the engine cannot be replaced with a new turbocharger because there are too much impurities in oil after overhauling which will damage the replacement turbocharger immediately.
Please run the old turbocharger for 7-10 days and then replace to new turbocharger and new engine oil.

Notice

* Please check the specifications carefully before buying. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles.
* Professional installation is highly recommended(No Instruction Included)
* Due to the light and screen difference, the item's color may be slightly different from the pictures.
* Please allow 0.5-2 cm differences due to manual measurement.
