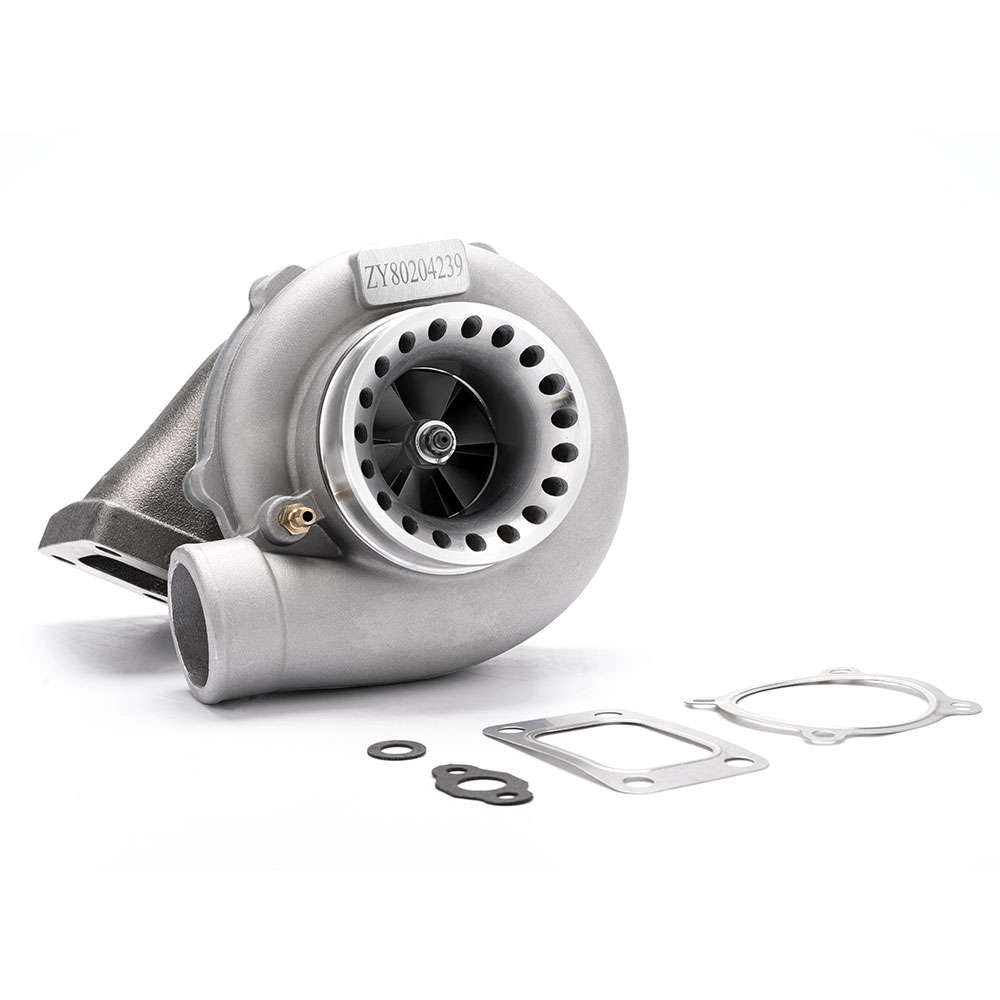

GT35 GT3582 Turbo Charger T3 AR.70/63 Anti-Surge Compressor Turbocharger Bearing

Description

Are you trying to put together a cost effective turbocharger system for your vehicle? You should know a turbocharged car has about 20-40% more total power than a non-turbo car of the same year, make and model. Well, Maxpeedingrods GT35 GT3582 turbocharger is excellent for single turbo applications for 4 or 6 Cylinder Engines, Don't hesitate to get a turbo to boost your car's power.

Application

This turbo is a universal application street turbo, some modification may be required based on individual vehicle.
Perfect for all 4/6 cylinder and 2.5L-6.0L engines
Horse Power: Capable of Boosting Horse Power up to 600HP

Specification

Exhaust Inlet (Turbo Manifold) Flange: T3 Flange
Exhaust Outlet (Downpipe) Flange: 4-Bolt
Turbine Trim: 84.2
Turbine A/R: 0.63
Turbine Inducer Diameter: 68mm
Turbine Exducer Diameter: 62.4mm
Compressor Trim: 56.9
Compressor A/R: 0.7
Compressor Inducer Diameter: 61.5mm
Compressor Exducer Diameter: 81.5mm
Bearing Type: Wet Float
Cooling Type: Water + Oil
Internal Wastegate: No
Warranty: one year for any manufacture defects
Compress Inlet Size(Air intake): 4 inch (103.5mm)
Compressor Outlet Size: 2.5 inch (63.6mm)
Wastegate：External Wastegate
Oil feed/inlet: M10*7/16-24
Oil drian/outlet: 2*M8*1.25
Water inlet/outlet: M14* 1.5
Maximum PSI：22

Feature

-100% BALANCING TEST，This Turbocharger you will receive has been balanced using the VSR machine technology.
- Turbine housing：Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius.
- Steel Turbine Wheel：Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius.
- Compressor housing：ZL104 aluminum.
- Compressor wheel/blades:
Cast Aluminium with good gas tightness and corrosion resistance.
-High Quality Material.
-Boost Engine Horsepower Significantly.
-Increase Engine Power and Torque Outpout.
-Maintain Combustion Chamber Pressure and Fuel/Air Load.
-Built for Durability and Strength.
-Warranty: one year warranty for any manufacturing defect

Installation Suggestions

We highly recommend you make sure the points below before installing:
1.Replace the air filter: if the if the air filter is not replaced may cause the compressor wheel damage.
2.Replace the engine oil: Because floating bearing and turbocharger will be damaged by impurities in the old oil.
3.After large overhaul, the engine cannot be replaced with a new turbocharger because there are too much impurities in oil after overhauling which will damage the replacement turbocharger immediately.
Please run the old turbocharger for 7-10 days and then replace to new turbocharger and new engine oil.

Note

* To protect the turbochager and your car engine, Air filter is necessary.
* Professional installation is highly recommended (No Instruction Included).
* For any needs please contact us.
* This is universal application turbo, so modification might be required for some vehicles.
