Turbo compatible for Nissan Safari Patrol 4.2L TD42T TB42 Y60 + Manifold + oil line amd

Application

Turbo Suitable for:

Compatible for 1.5L to 2.5L any 4/6 cylinder engine

Cooling Type: Oil Cooled Wastegate Internal

Horse Power: Horse Power Boost up to 420HP

Manifold Suitable for:

 Compatible for Nissan Safari / Patrol 4.2L TD42

 - For TB42, TB45, TD45, this manifold may also fit; as far as we know, the port configurations are the same. Please double check the dimensions with us before buying.

Oilline Suitable for:

for T3, T3 / T4, T4, T70, T66, etc. Oil Cooled Turbochargers

Specification

Compressor

Compressor Trim: 44

Compressor Inducer Diamter: 50.5 mm

Compressor Exducer Diamter:  76 mm

Compressor A/R: 0.5

Turbocharger Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns

Exhaust (Downpipe) Flange: V-Band Flange

Turbine Trim:73

Turbine Inducer Diamter:  65.5 mm

Turbine Exducer Diamter: 55.9 mm

Turbine A/R: 0.63

Manifold Specifics：

Turbo Flange : T3 flange

Mount Type:  top mount / high mount

External Wastegate:  38mm. You can plate it off if intending to use internally wastegated Turbo (The blocking plate is included as shown in the picture)

Oi lLine Specifics：

Oil return line length: 550mm

Oil return line inner diameter: ¢21

Oil feed line length: 1000mm

Oil feed line inner diameter: ¢14

Hose end fitting: 10 AN

Material: High Strength Steel with Aluminum Material

Condition: 100% Brand New

Bearing Type: Journal bearing

Warranty: one year warranty for any manufacturing defect

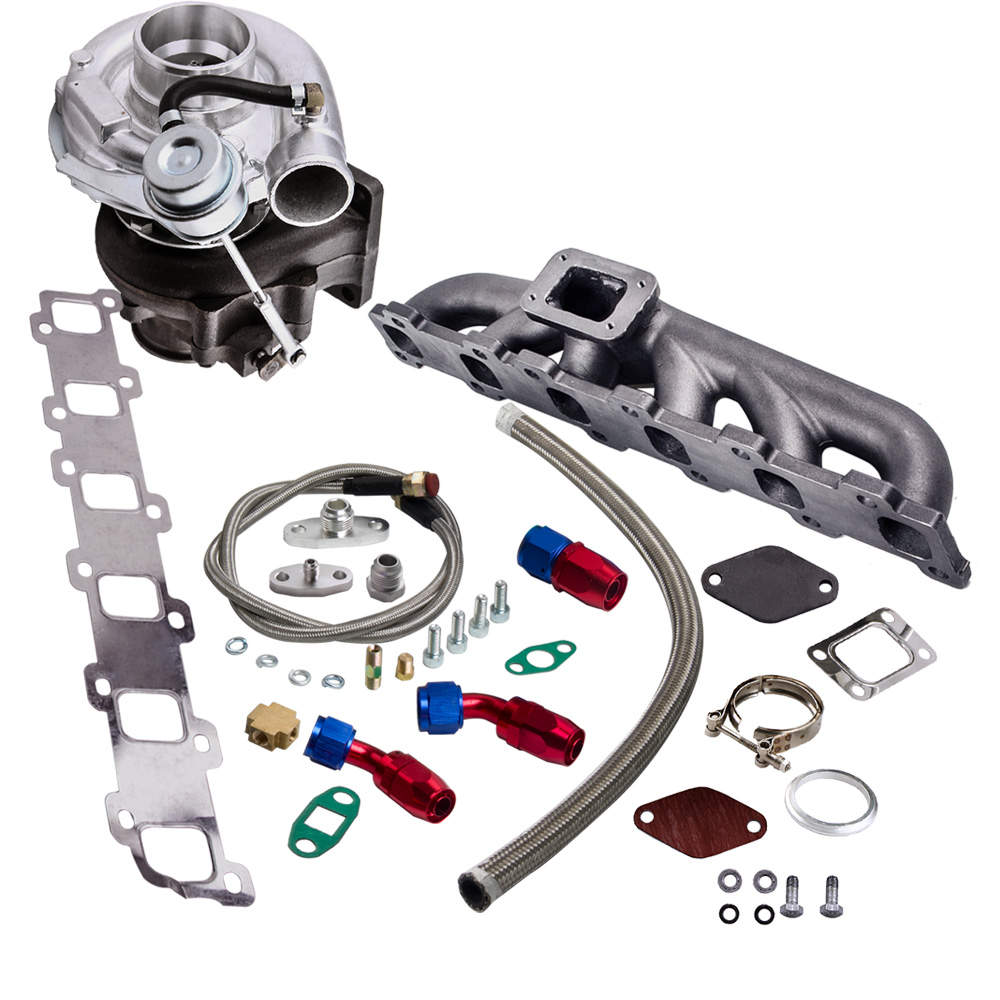

Accessories: You will get exactly as shown in the picture above

Feature

 - Specific design to increase the volumetric efficiency of the engine, resulting in a gain in power output.

 - Improve Exhaust Gas Flow and Increase Turbo Spool up and Reduces Turbo Lag

 - Manufactured from high quality cast iron for durable usage

 - Continuous tests under extreme conditions to withstand high temperature

 - Special surface treatment to resist corrosion.

 - Accurate dimensions with exquisite workmanship

 - Tubes sized and shaped to match cylinder-head exhaust port

Notice

- Please double confirm before ordering.

- No instruction included; Professional installation and alignment suggested.

- Please check our store for other auto parts you may be interested in.

- For any needs please contact us.
