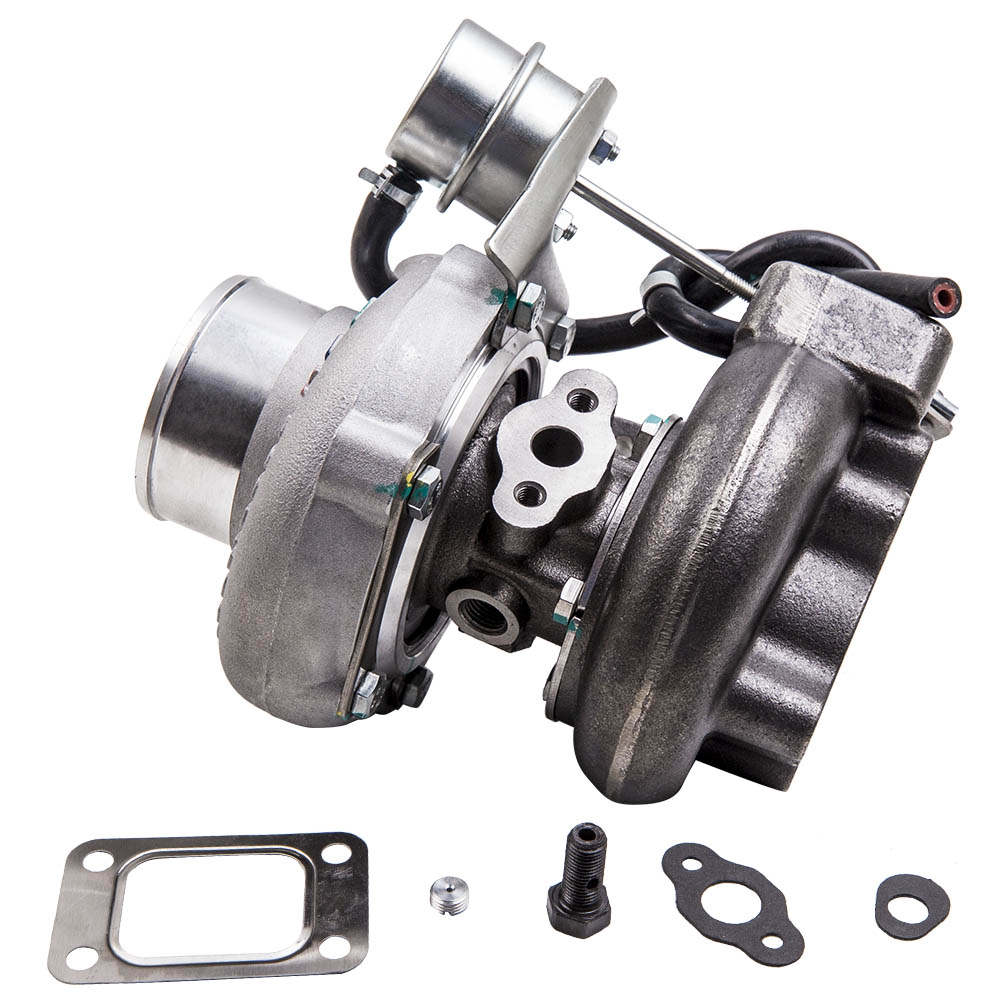

GT2860 Turbo 1050 Degree Celsius Temperature Resistance For 1.6-2.5L Engine

Application

Perfect for all 1.5L-2.0L engines, for all 4 cylinder
Horse Power: Boost Horse Power up to 350+BHP

Specification

Exhaust Inlet (Turbo Manifold) Flange: T25 Flange
Exhaust Outlet (Downpipe) Flange: 5-Bolt
Turbine Trim: 78.9
Turbine Inducer Diameter: 52.8mm
Turbine Exducer Diameter: 46.9mm
Turbine A/R: 0.64
Compressor Trim: 42.4
Compressor Inducer Diameter: 45.6 mm
Compressor Exducer Diameter: 70 mm
Compressor A/R: 0.6
Cooling Type: Water + oil cooled
Bearing Type: Floating Type
Warranty: one year for any manufacture defects

Feature

1. Turbine housing：Stainless steel shell with high temperature resistance 1020℃.

2. Steel Turbine Wheel：Made from the special K419 alloy to achieve high oxidation resistance and stability under high temperatures up to 1000 degrees Celsius.

3. Compressor housing：ZL104 aluminum.

4. Compressor wheel/blades:

- Cast Aluminium with good gas tightness and corrosion resistance.

- The impeller is colored by five-axis CNC milling, the shape of the blade is more perfect, and the precision is higher.

5. Perfectly designed and durable floating bearing.

6. Water-cooled structure greatly extends turbine life.

7. 100% BALANCING TEST: This Turbocharger you will receive has been balanced using the VSR machine technology.

Notice

* Please check the specifications carefully before buying. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles
* Professional installation is highly recommended(No Instruction Included)
