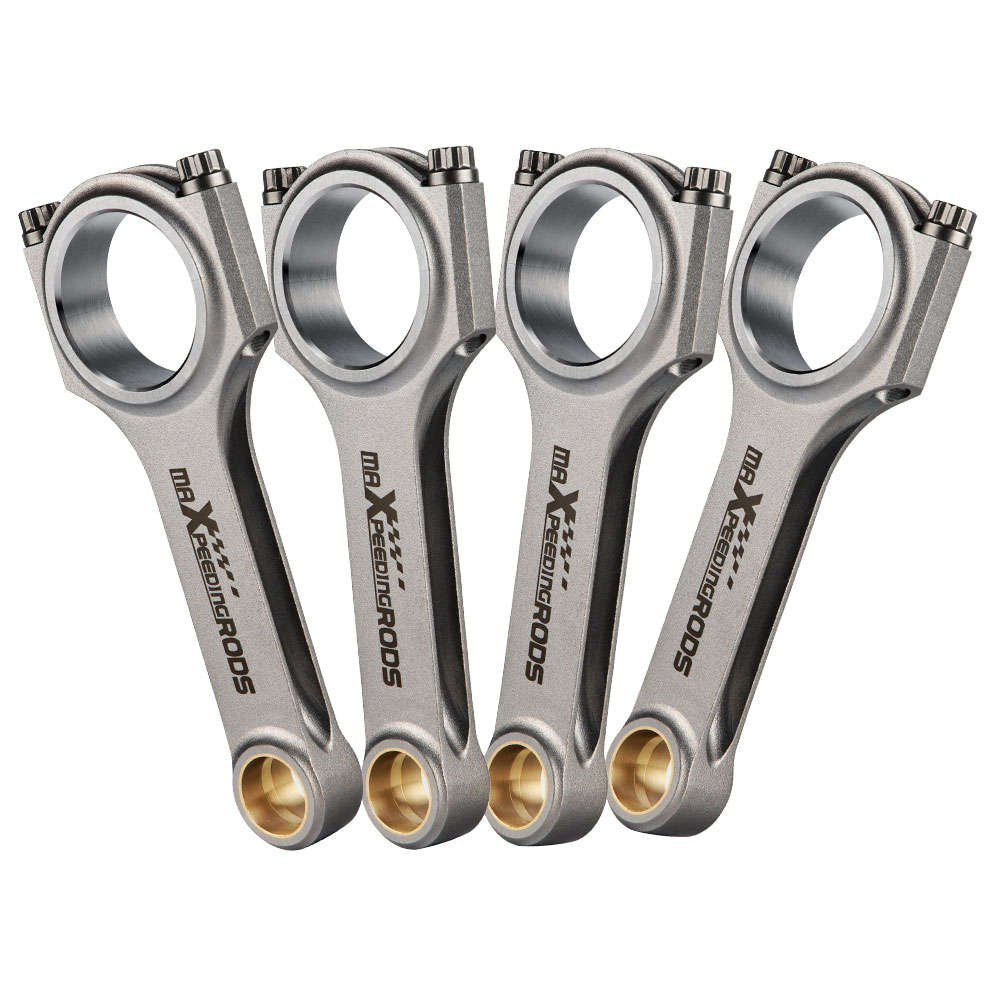

Compatible for Mitsubishi Colt Z30 1.5L 4G15 131mm Connecting Rod - High Performance 4340 EN24 H-Beam Conrod

Application

Compatible for Mitsubishi Colt 4G15 4G15T 1.5L
Compatible for Mitsubishi Lancer 4G15 4G15T 1.5L
Compatible for Mitsubishi Mirage 4G15 4G15T 1.5L

Specification

TÜV Certification Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 4 Pieces as showing in picture
Bolts: Including ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 5/16" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800hp per set
Strength of the fastening (PSI): 200,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 7000rpm
warranty: one year warranty for any manufacturing defect

Dimensions

Center to center length: 131mm
Big end diameter: 45mm
Small end diameter: 19.9mm
Big end width: 19.9mm
Small end width: 19.9mm

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note

Professional installation is highly recommended (No Instruction Included)
