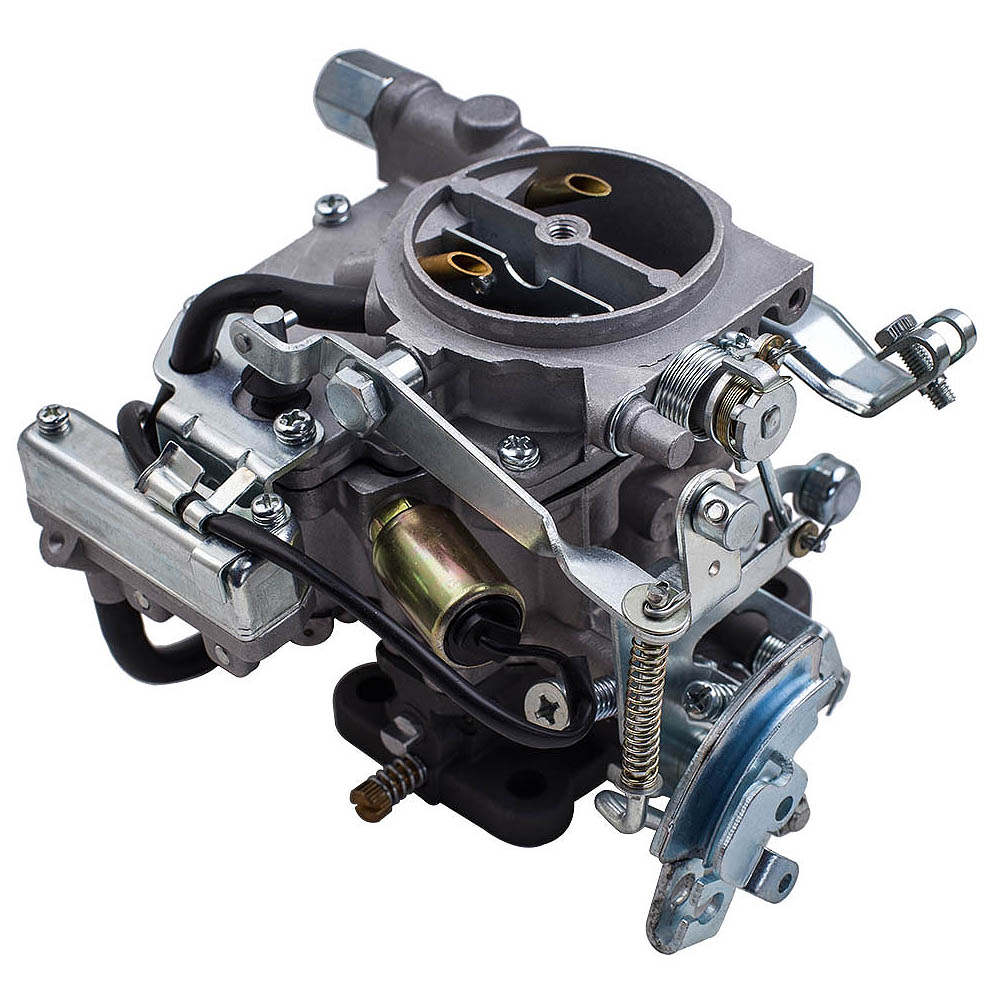

Compatible for Toyota Starlet 4K 1982-1984 21100-13170 New carburetor/carb
Couldn't load pickup availability
Description
A carburetor/carburettor is a device that mixes air and fuel for internal combustion engines in the proper air–fuel ratio for combustion. A carb consists of an open pipe through which the air passes into the inlet manifold of the engine, it allows air and fuel into the engine through valves, mixing them together in different amounts to suit a wide range of different driving conditions.
Application
Compatible for Toyota Corolla :1979-1987
Compatible fo compatible for Toyota LiteAce :1973-1979
Compatible fo compatible for Toyota Sprinter :1973-1978
Compatible fo compatible for Toyota Corolla ke70 :1979-1987
Compatible fo compatible for Toyota Starlet :1977-1981
Compatible fo compatible for Toyota Townace :1979-1981
Compatible fo compatible for Toyota Corolla 4K 1977-1981
Compatible fo compatible for Toyota Starlet 4K 1982-1984
Specification
No. of Cylinders: 2
Mounting Studs Measure：80*44mm（center to center）
Intake Side diameter（same）：28mm
Choke outer diameter：63mm
Displacement: 1.1-3.6L
Measurement of Base Plate: 44x80
Measurement of Barrel: Φ28mm
Material: Zinc alloy
Weight: 2.8kg
Warranty: one year
Package size: 25 * 21 * 20cm
Package include:1x Carburetor
OE: 2110013170 , 21100-13170 , 21100 13170
Feature
1.To mix air and gasoline in a correct ratio to ensure proper engine function.
2.Give your machine the new power it deserves.
3.Various compatibility，Perfect match for the original car.
5.Direct replacement，Easy to installate.
6.Built to strict quality control standard，Stable characteristics, high reliability.
7.High performance electric choke, with fuel cutoff valve.
8.High Quality, Safe Packaging and Fast Shipping, 100% electrically tested before leaving the factory.
Carburetor cleaning process
(1) First remove the carburetor from the car
Turn off the oil and unplug the oil pipe. Twist out the nut connecting the carburetor and the engine with a quincunx or quincunx (depending on the size of the nut), and then twist out the screw that connects the carburetor to the filter. Finally, remove the throttle cable. Turn off. Oil, unplug the oil pipe.
(2) Remove the carburetor float chamber
Use a cross knife to twist out the three screws of the carburetor float chamber cover.
(3) Understand the carburetor
After disassembling the carburetor, let’s get to know the names of its parts.
(4) Decompose the various parts of the carburetor
Remove the main fuel injection hole, idle fuel injection hole and float of the carburetor.
(5) Start cleaning the carburetor
Use the carburetor cleaning agent to aim at each measuring hole and spray (note that the eyes should not be aimed at the carburetor, so as not to spray the cleaning agent into the eyes).
(6) Install carburetor
After cleaning, the carburetor can be installed. Then you can load him into the car.
Notice
- Please confirm your original part number or oem numbr can matche up with one of the part numbers above.
- Professional installation is highly recommended (No Instruction Included).
- For whatever we can help,please feel free to contact us. We are always here for you.
