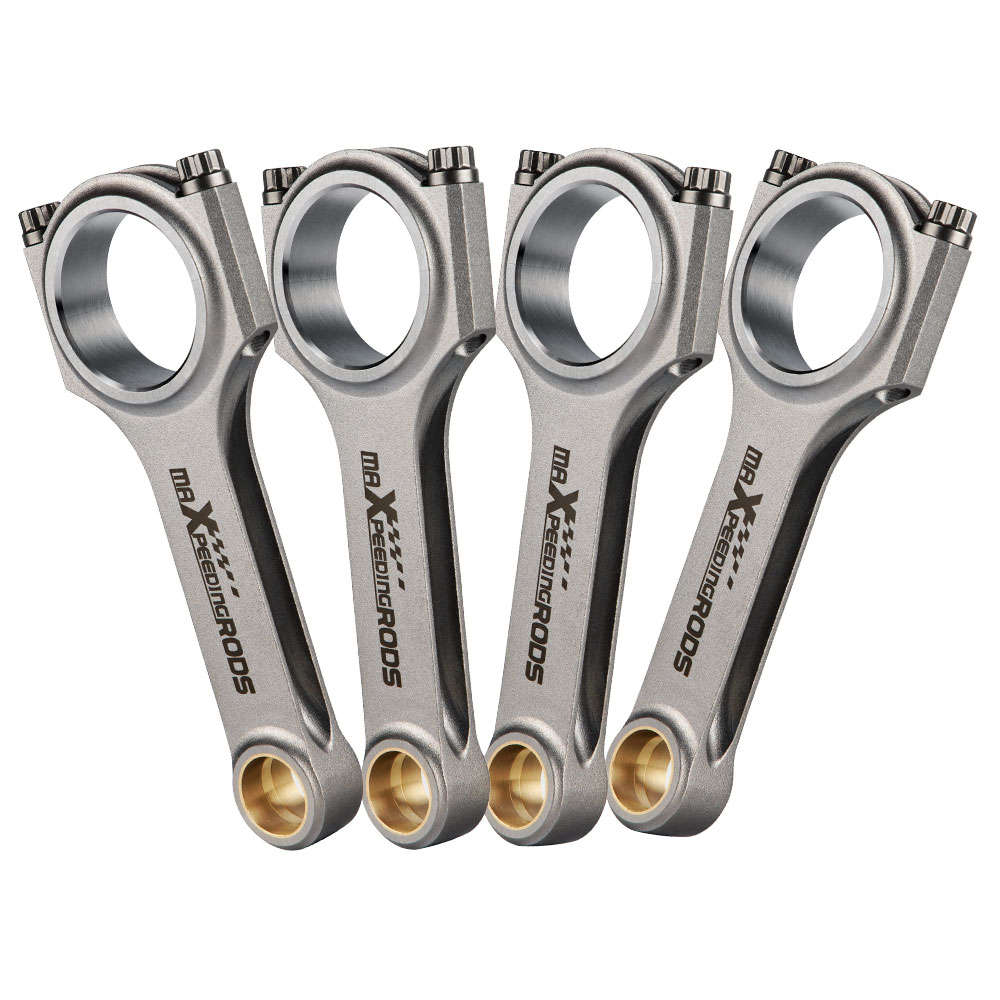

Connecting Rods Conrod for A12 compatible for Datsun 1200 compatible for Nissan Sunny B310 Sedan Coupe 121.5mm

Application

Compatible for Datsun 1200 A12
Compatible for Nissan Sunny B120 all year
Compatible for Nissan Vanette C120 A12 C22 A12S
Don't fit for B310 A12 Van

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Dimensions

Center to center length: 121.5mm
Big end diameter: 48mm
Small end diameter: 17.45mm
Big end width: 24.3mm
Small end width: 21.6mm

Specification

TÜV Certification Con Rods
Type: Forged 4340 aircraft chrome moly quality steel
H-beam Conrods Quantity: 4 Pieces as showing in picture
Bolts: Including ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 3/8" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800hp per set
Strength of the fastening (PSI): 200,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 7000-9000rpm
warranty: one year warranty for any manufacturing defect

Note

Professional installation is highly recommended (No Instruction Included)
