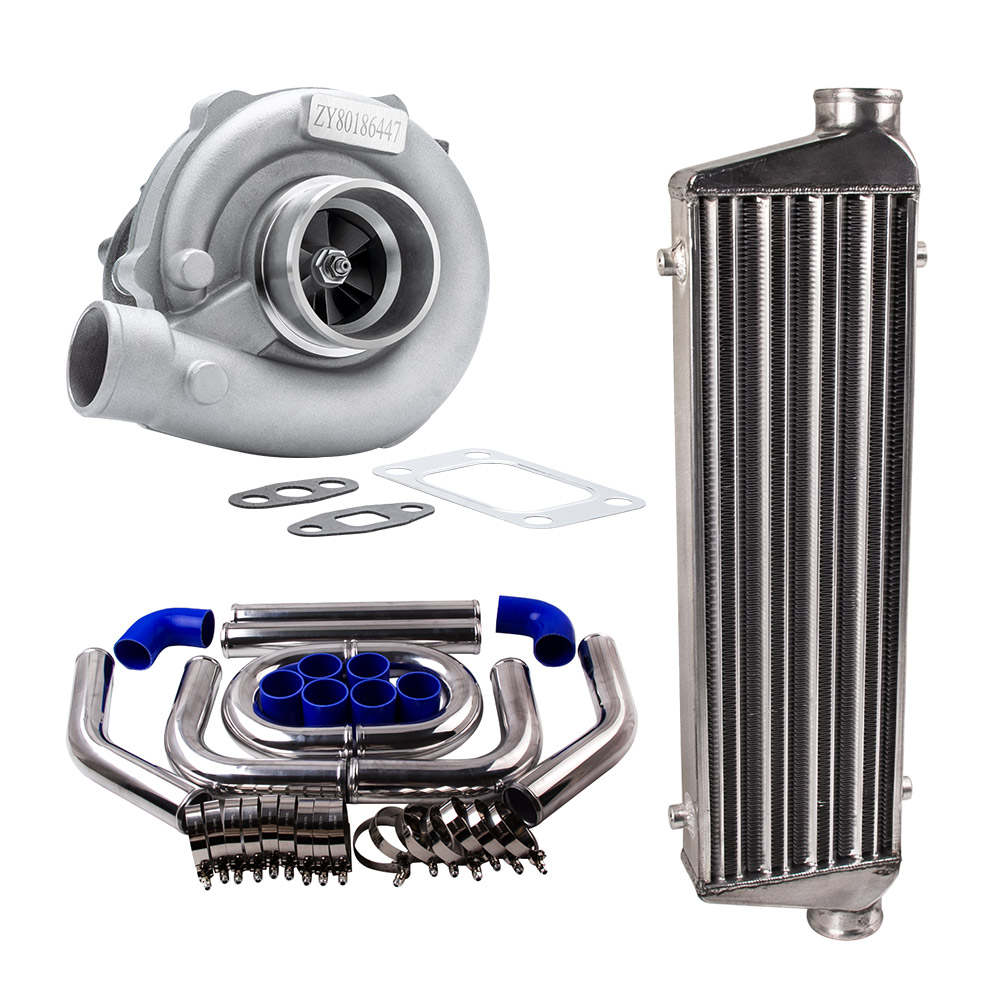

T04E T3/T4 .63 A/R 57 TRIM TURBO 400+HP BOOST STAGE III+Intercooler +Piping Pipe

Application

Perfect for 1.6L-2.5L engines
Perfect for 3.2L-5.0L engines in twin turbo application, capable to 800HP
Boost pressures are 7psi(.5 Bar) to 21psi(1.5 Bar)

Specification

*Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
*Exhaust (Downpipe) Flange: Standard T3 5 bolt downpipe flange pattern
*Cooling Type: Oil Cooled
*Wastegate: External Wastegate
*Horse Power: Boost Horse Power up to 300+HP
*Compressor:
Trim: 44
A/R: 0.5
Inducer: 50.5
Exducer: 76

*Turbine:
Trim: 73
A/R: 0.63
Inducer: 65.5
Exducer: 55.9

*Bearing Type: Floating  Bearing

Intercooler Information

*Inlet / outlet size :  2.5"

*Core size :  21''x 7''x 2.25''/550x175x64mm

*Full size:  27.00" (L) X 7.00" (H) X 2.50"(W)

*Compress Air Flow Rate<350Cubic Feet/Min, Rated up to500 Max HP

*Pressure drop:  2~5psiat35psi, 0.2~0.5psiat15psi

*Material:  Aluminum alloy

*Core design:   Tube & Fin

*Applaction:  Universal

Intercooler Piping Pipe Kit Information

*Application：Universal fits all Turbo Projects

*Description：

Pipe Thickness: 1.8mm

Pipe length: 18''

Package Included:You will get exactly as shown in the picture above

Condition: 100% Brand New

Notice

Professional installation is highly recommended (No Instruction

For any needs please contact us
