T04E T3/T4 .63A/R 57 Trim Turbo Charger 400+HP Boost + Oil Feed Lines gaskets

Application

Compatible for 1.5L to 2.5L any 4/6 cylinder engine
Perfect for 3.2L-5.0L engines in twin turbo application, capable to 800HP
boost pressures are 7psi(.5 Bar) to 21psi(1.5 Bar)

Specification

Exhaust (Turbo Manifold) Flange    T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange    Standard T3 5 bolt downpipe flange pattern
Cooling Type    Oil Cooled
Wastegate     External wastegate
Horse Power    Boost Horse Power up to 300+HP

Compressor:
Trim: 44
A/R: .5
Inducer: 50.5
Exducer: 76

Turbine:
Trim: 73
A/R: .63
Inducer: 65.5
Exducer: 55.9

​* OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm

Condition: 100% Brand New
Bearing Type: Journal Bearing

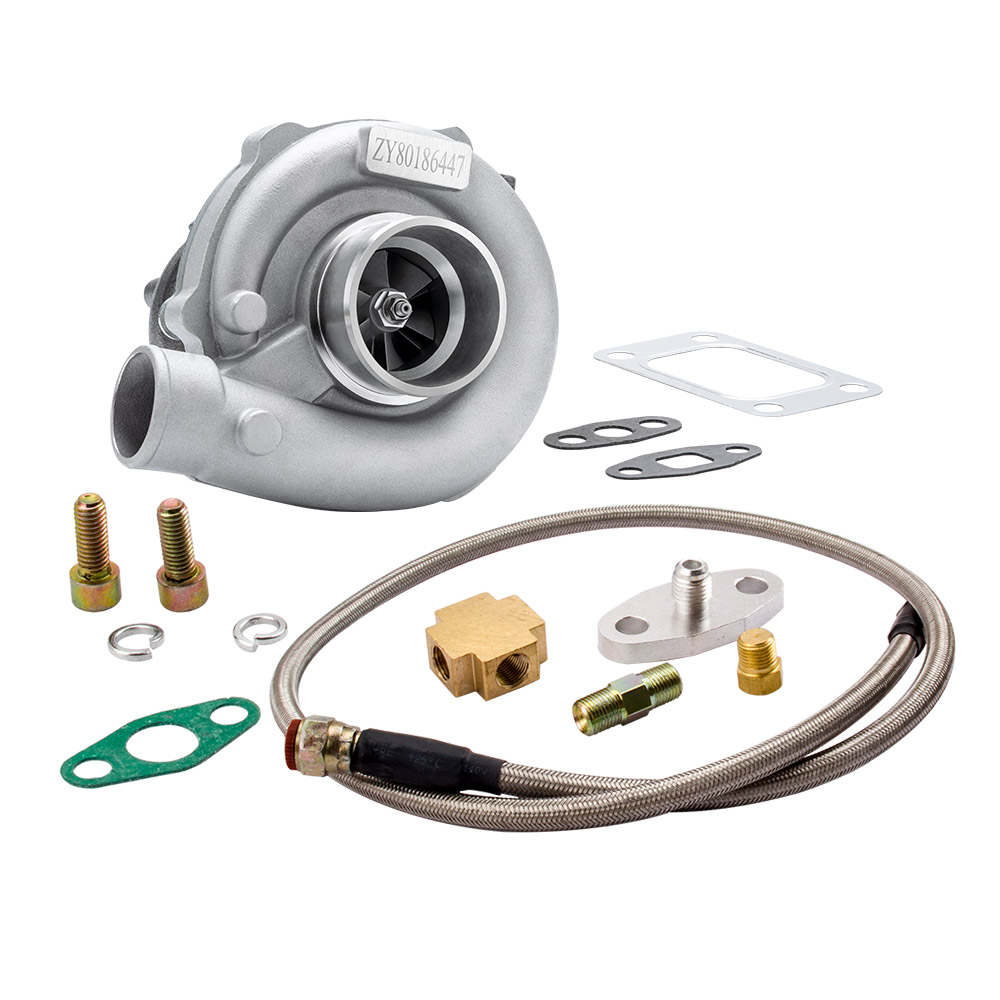

Accessories :You will get exactly as shown in the picture above

Warranty:  one year

Includes:
1 x Turbocharger Kit
1 x Braided Turbo Oil Feed Line
Hardware as Shown in the Picture Above

Notice

* Professional installation is highly recommended (No Instruction Included)
* This is universal application turbo, so modification might be required for some vehicles.
* For any needs please contact us
