T3/t4 T04E V-band Turbocharger Turbo.63 A/r W/ Internal Wastegate Blow Off Valve

Application

Compatible for 1.5L to 2.5L any 4/6 cylinder engine

Specification

Exhaust (Turbo Manifold) Flange:   T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange:   V-Band Flange
Cooling Type: Oil Cooled
Wastegate: Internal Wastegate
Horse Power: Boost Horse Power up to 420HP

Compressor:
Trim: 44
Inducer Diameter:50.5 mm
Exducer Diameter:76 mm
A/R:0.5

Turbine:
Trim:73
Inducer Diameter:65.5 mm
Exducer Diameter:55.9 mm
A/R:0.63

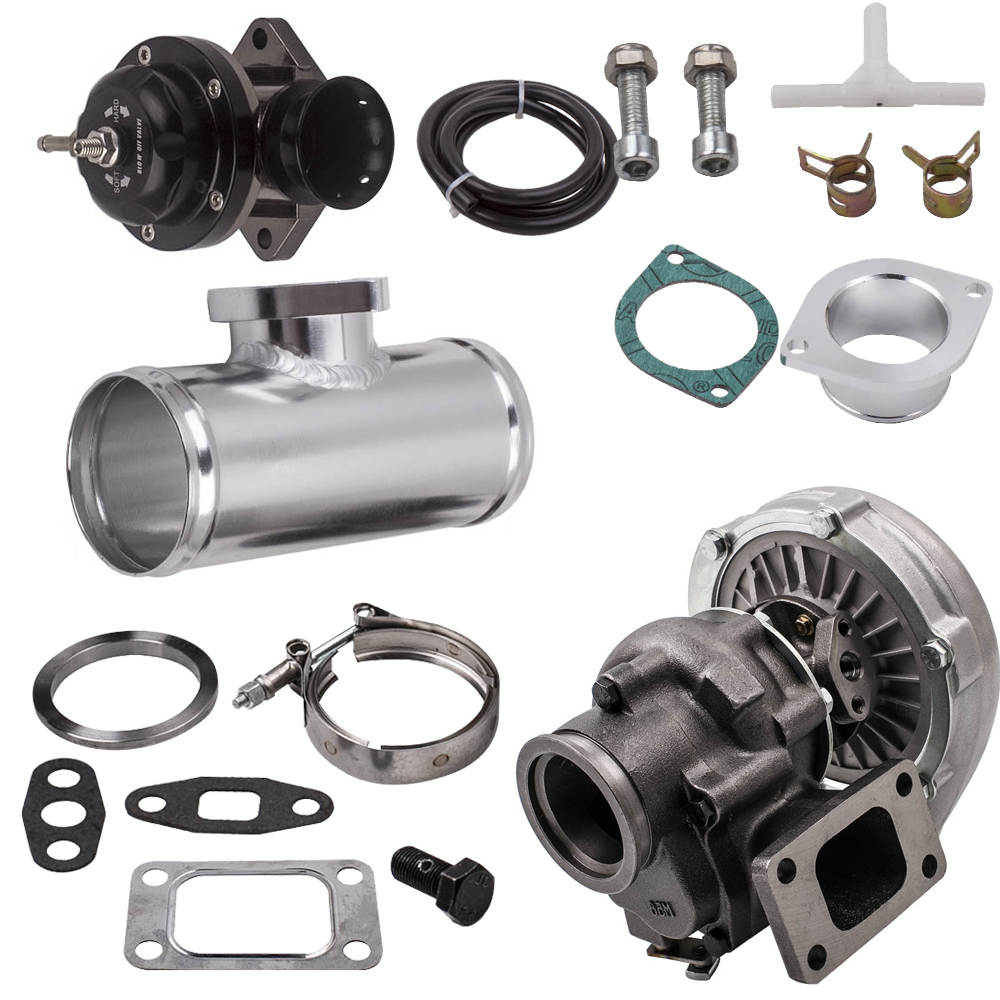

Package Includes:

1xT3/T4 T04E V-band Turbocharger
1x Type-RS Blow Off Valve Kit
1x Type-RS 2.5" Aluminum Flange Pipe Adapter
(You will get exactly as shown in the picture above)

Condition: 100% Brand New
Bearing Type: Floating Bearing
Warranty: one year
Accessories: You will get exactly as shown in the picture above

About Blow Off Valve

Blow Off Valve:

• Holds Up to 30PSI Boost Pressure
• Easy Assembly,Aluminum Flange, CNC Machined Billet Aluminum Body
• Dual Spring System Promoted Response & Allows for High Boost Pressures
• Hard-Anodized Valve for Increased Air Flow
• Powder-Coated Anodized and Polished Finish
• 2 Bolts Mounting Design

Flange Pipe Adapter:
2.50" (63mm) Pipe Size
Fits Type-S or Type-RS Dump Pipe Flange
Oval / 2 Bolt Flange Design type

Condition: 100% Brand New
Warranty: one year warranty

Notice

* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us
