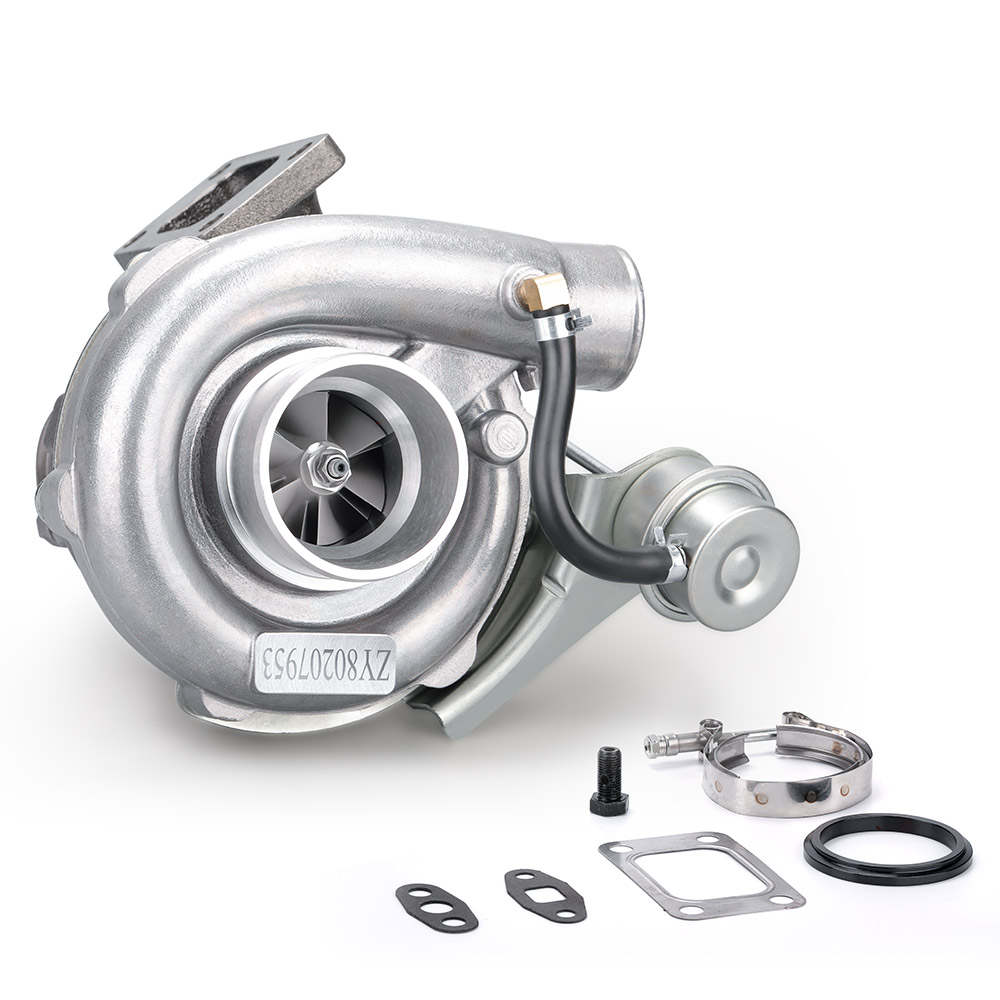

T3 T4 Turbo 63 A/R Oil Hybrid V Band Universal Turbocharger for 4 6 Cyl tcd

Description

Are you trying to put together a cost effective turbocharger system for your car? You should know a turbocharged car has about 20-40% more total power than a non-turbo car of the same year, make and model.Maxpeedingrods Standard Performance universal turbogot just what you're looking for!
Don't hesitate to get a Maxpeedingrods aftermarket replacement turbo to boost your car's power.

Application

Perfect for all 4 or 6 CYL, 1.5-2.5L engines（If it exceeds this range, it will cause damage to the turbo）
Horse Power: Capable of Boosting Horse Power up to 420HP
Bearing: Journal Bearing

Specification

Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust Outlet (Downpipe) Flange: V-Band Flange
Bearing: Journal Bearing
Cooling Type: Oil Cooled
Wastegate: Internal Wastegate
Compressor：
Trim: 48.1
A/R: 0.5
Inducer: 52.7
Exducer: 76
Turbine:
Trim: 74.2
A/R: 0.63
Inducer: 64.8
Exducer: 55.8
Turbine exhaust outlet : 79mm
Turbine exhaust inlet：44.7mm/85.8mm
Compressor outlet：78 mm
Compressor inlet：51.5 mm

Features

-100% BALANCING TEST，This Turbocharger you will receive has been balanced using the VSR machine technology.

- Turbine housing：Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius.

- Steel Turbine Wheel：Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius.

- Compressor housing：ZL104 aluminum.

- Compressor wheel/blades:

Cast Aluminium with good gas tightness and corrosion resistance.

-High Quality Material.

-Boost Engine Horsepower Significantly.

-Increase Engine Power and Torque Outpout.

-Maintain Combustion Chamber Pressure and Fuel/Air Load.

-Built for Durability and Strength.

-Warranty: 2 years warranty for any manufacturing defect

Note

* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles
* Professional installation is highly recommended (No Instruction Included)
* Additional parts will be needed for a complete installation. Please consult professional turbo installer for details.
