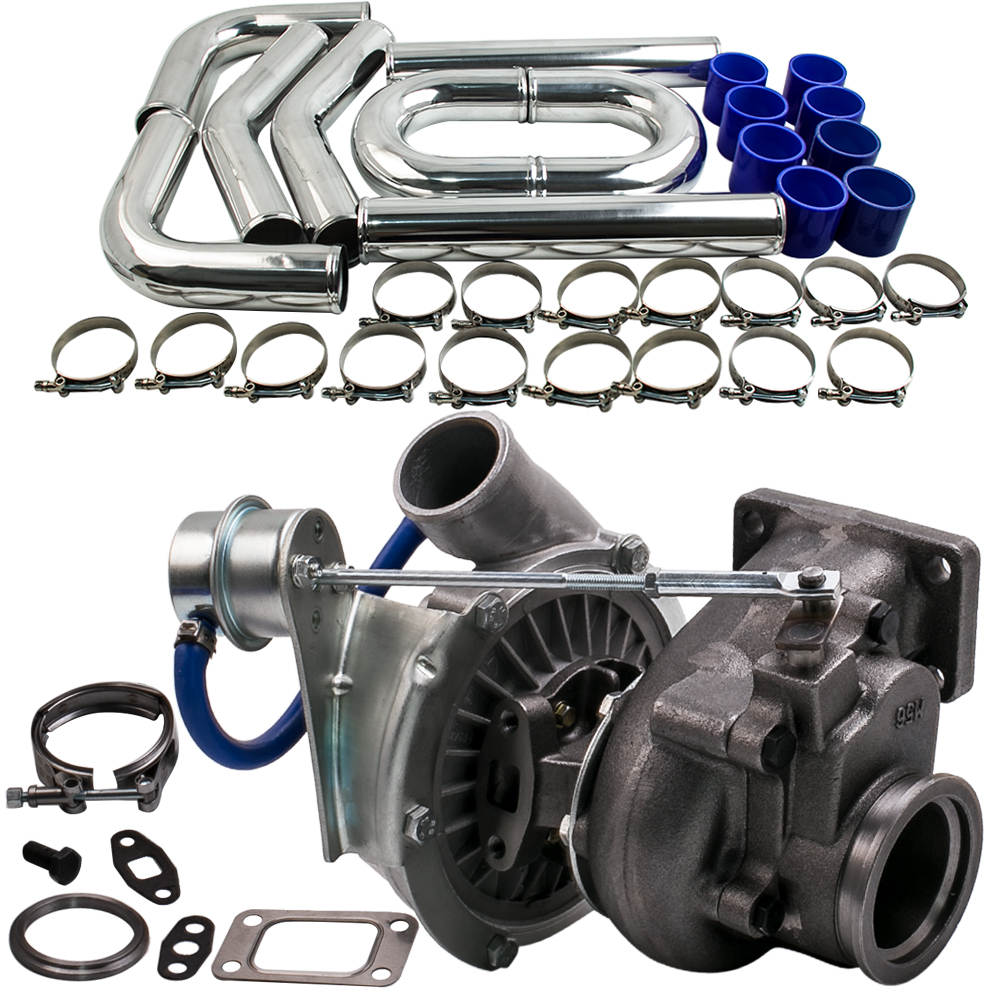

Universal 76mm 3 inch intercooler piping Kits amp; t3 t4 Turbo Oil V-Band A/R .63 .50

Turbo

Horse Power: Capable of Boosting Horse Power up to 420HP

Cooling Type: Oil Cooled

Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns

Exhaust Outlet (Downpipe) Flange: V-Band Flange

Turbine Trim: 73

Turbine Inducer Diameter:  65.5 mm

Turbine Exducer Diameter: 55.9mm

Turbine A/R: 0.63

Compressor Trim: 55

Compressor Inducer Diameter: 50.5 mm

Compressor Exducer Diameter: 76 mm

Compressor A/R: 0.5

Bearing: Journal Bearing

Warranty: one year

Internal Wastegate: Yes

Piping Pipe Kit

Pipe length: 19.68''(500mm)

100% brand new  Never been tried or installed.

100% quality assurance tested

Made out of high quality of 6061 aluminum Manual polishing finished

Package Including

2x 180 degrees Pipes
2x 90 degrees Pipes
2x 45 degrees Pipes
2x Straight Pipes
8x 3" inch Straight Couplers
16x T-bolt Clamps

Turbo and gaskets

* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us.

* This is universal application turbo, so modification might be required for some vehicles

* Professional installation is highly recommended (No Instruction Included)
