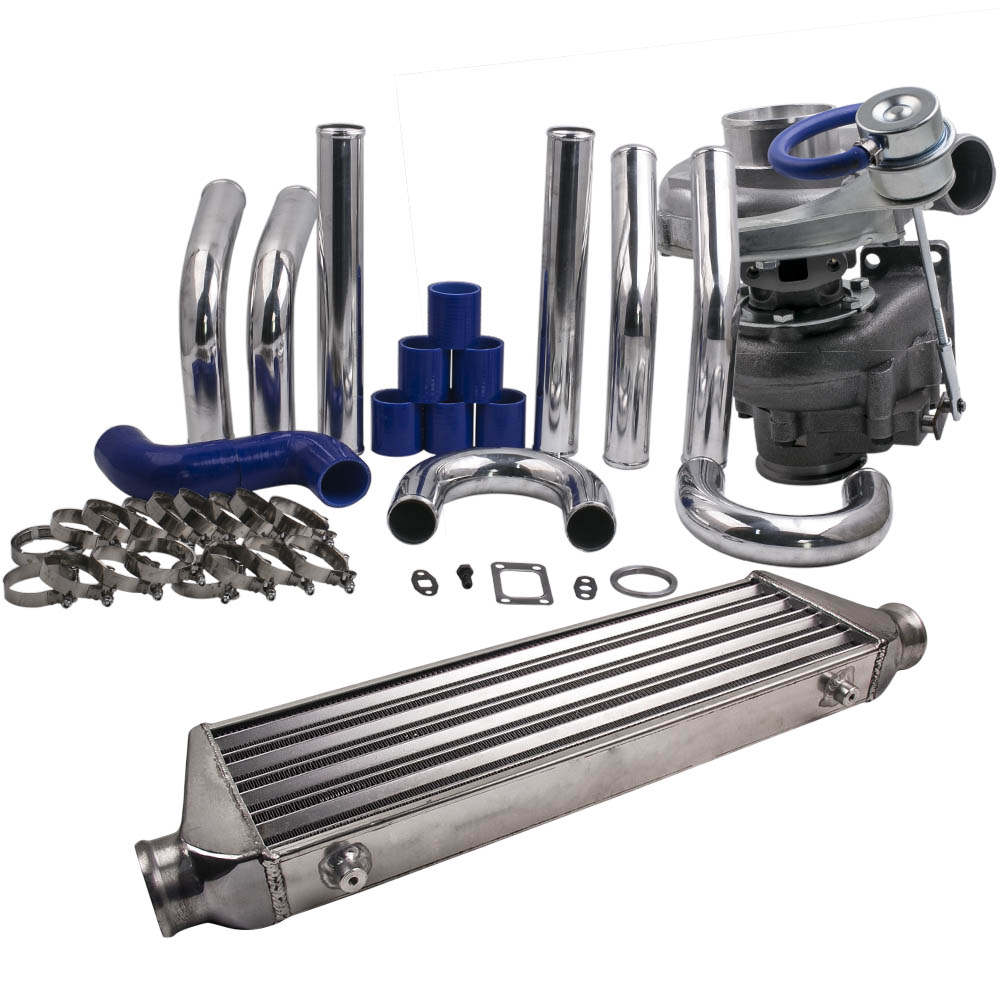

T3 T4 Turbo Charger0.63 A/R 4 6 CYL+ Intercooler + 2.5 inch Intercooler Piping Kit

Application

Compatible for 1.5L to 2.5L any 4/6 cylinder engine
Horse Power: Capable of Boosting Horse Power up to 420HP
Cooling Type: Oil Cooled

Specification

Turbo Charger
Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust Outlet (Downpipe) Flange: V-Band Flange
Turbine Trim: 72.8
Turbine Inducer Diameter:  65.5 mm
Turbine Exducer Diameter: 55.9mm
Turbine A/R: 0.63
Compressor Trim: 44.2
Compressor Inducer Diameter: 50.5 mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.5
Bearing: Journal Bearing
Warranty: one year
Internal Wastegate: Yes

Intercooler

Inlet / Outlet size :  2.5" / 64mm

Overall size :  27'' x 7'' x 2.5'' inch

Core size :  21'' x 7'' x 2.25'' inch / 550x175x64mm

Core design:  Tube & Fin

Intercooler Piping kits

2x 90 Degree Aluminum Pipe 2.5"
2x Straight aluminum pipe 2.5"
2x 135 Degree Aluminum Pipe×2 2.5"
2x U Aluminum Pipe×2 2.5"
6x Straight Silicon Hose 2.5" (Blue )
2x 90 Degree Silicone Hose×2 2.5"(Blue )
16x Clamps 2.5"

Pipe Thickness: 1.8mm

Pipe length: 18''

Notice

* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles
* Professional installation is highly recommended (No Instruction Included)
