Turbo Exhausted Manifold +Turbocharger compatible for Nissan Safari Patrol GQ GU Y60 TD42

Application

Compatible for 1.5L to 2.5L any 4/6 cylinder engine

Specification

Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange: V-Band Flange
Cooling Type: Oil Cooled
Wastegate: Internal Wastegate
Horse Power: Boost Horse Power up to 420HP

Compressor:
Trim: 44
Inducer Diameter: 50.5 mm
Exducer Diameter: 76 mm
A/R: 0.5

Turbine
Trim: 73
Inducer Diameter: 65.5 mm
Exducer Diameter: 55.9 mm
A/R: 0.63

Manifold Specifications:
Material: Cast Iron
Mounted type: Top mounted / High mounted
Turbo Flange: T3
Wastegate size: 38mm. You can plate it off if intending to use internally wastegated turbo (the blank plate is included)

Condition: 100% Brand New
Bearing Type: Floating Bearing
Warranty: one year warranty for any manufacturing defect

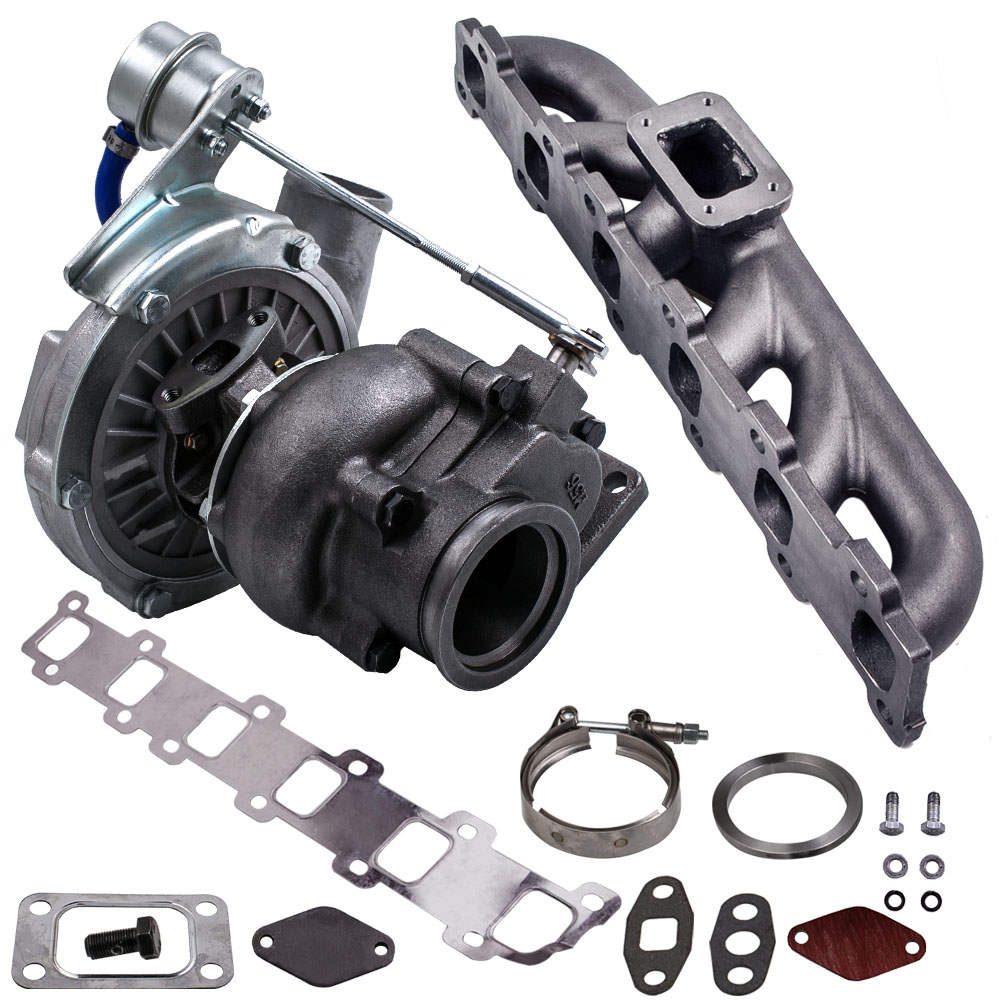

Accessories: You will get exactly as shown in the picture above

Note

Professional installation is highly recommended (No Instruction Included)
For any needs please contact us
This is universal application turbo, so modification might be required for some vehicles
