Universal T70 Turbo Turbocharger T3 .82 A/R + Oil Drain Return FEED Line Kit

Application

for all 3.0L and up engines

Specification

-Exhaust (Turbo Manifold) Flange: Standard T3 Flange
Exhaust (Downpipe) Flange: V-Band Flange
Cooling Type: Oil Cooled
Horse Power: Boost Horse Power up to 600BHP
-Compressor:
Trim: 57
Inducer Diameter: 56.6 mm
Exducer Diameter: 75 mm
A/R: 0.7
-Turbine
Trim: 62
Inducer Diameter: 74.4 mm
Exducer Diameter: 58.4 mm
A/R: 0.82
-Oil Specifications:
OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm
​OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm
-Condition: 100% Brand New
Bearing Type: Journal Bearing
Warranty: one year warranty for any manufacturing defect.

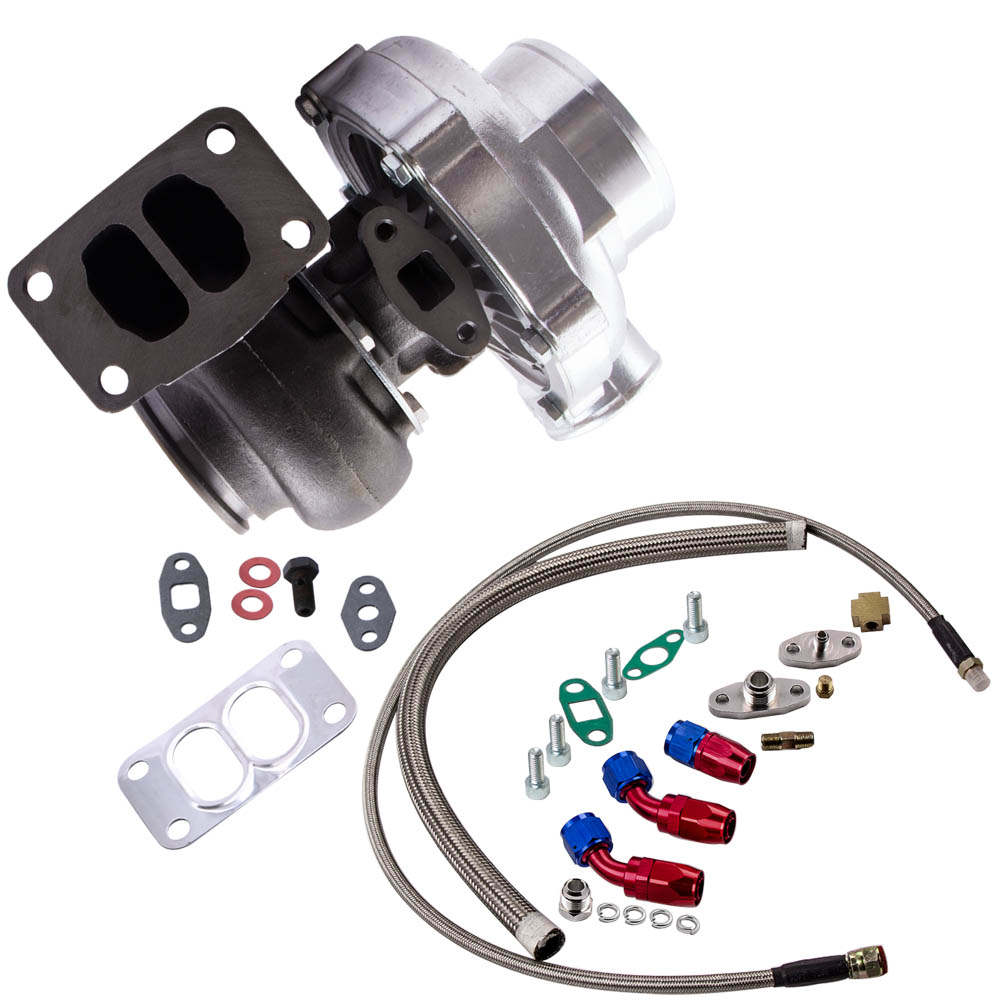

Accessories: You will get exactly as shown in the picture above

Note

-Professional installation is highly recommended (No Instruction Included)
-For any needs please contact us
-This is universal application turbo, so modification might be required for some vehicles
