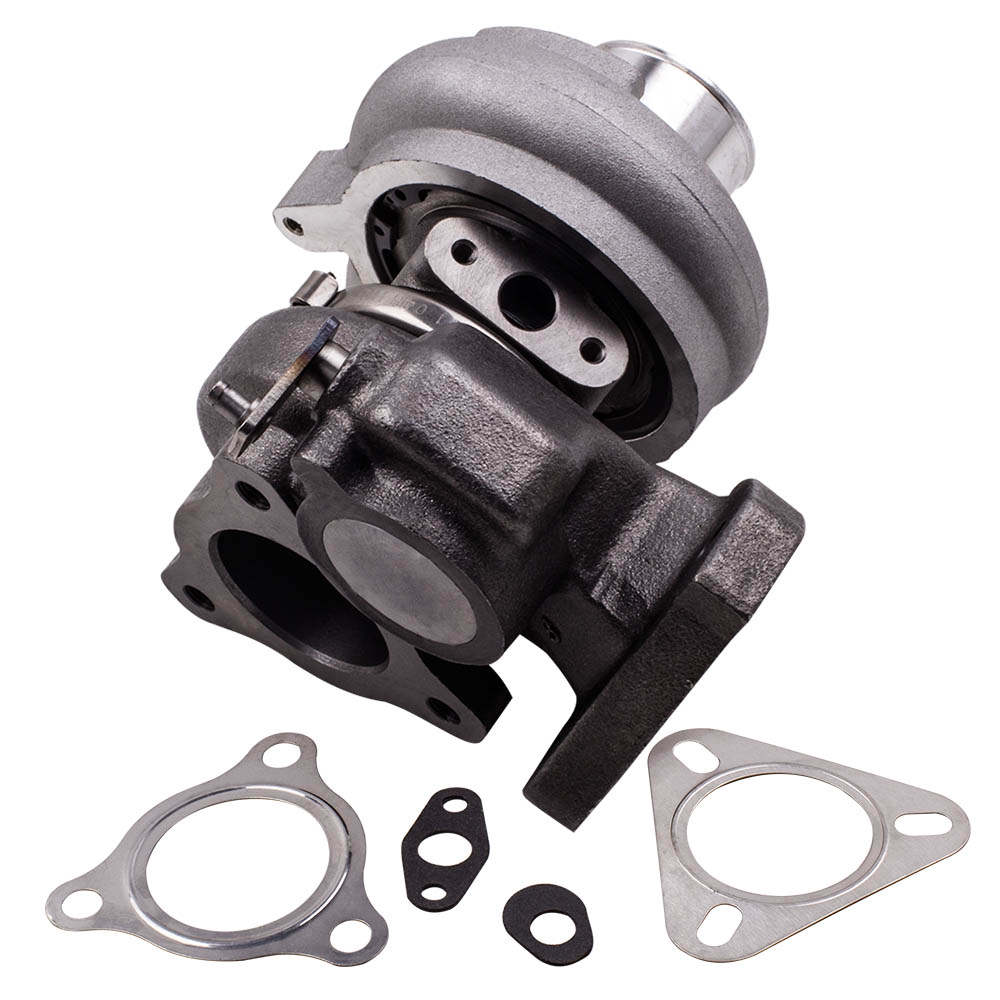

Compatible for Mitsubishi L200 L300 2.5L 4D56T 49177 Oil Cooled TD04-09B Turbo Charger

Application

Compatible for Mitsubishi Pajero, Shogun 2.5L 4D56/4D56T 88 - 96
Compatible for Mitsubishi Triton, L200 2.5L 4D56/4D56T 88 - 96
Compatible for Mitsubishi Express L300 2.5L 4D56/4D56T 88 - 96
Compatible for Mitsubishi Delica 2.5L 4D56/4D56T 88 - 96

Specification

Turbo Model : TD04-09B
Part Number & OEM Number:
49177-01500; 49177-01501; 49177-01510; 49177-01511; MD168053; MD168054; MD106720; MD108153
Exhaust (Turbo Manifold) Flange: 3 Bolt
Exhaust (Downpipe) Flange: 3 Bolt
Cooling Type: Oil Cooled Model
Bearing Type: Journal Bearing
Condition: 100% brand new
Accessories: You will get exactly as shown in the picture
Warranty: one year warranty for any manufacturing defect

Features

- High nickel alloy shell with high temperature resistance.
- Aluminum blades with precision machining forging.
- Turbine-driven forced induction device.
- Enhance engine power and reduce energy consumption.
- Improve fuel economy and reduce exhaust emissions.

Notice

- Please confirm your old turbo part number can match up with one of the part numbers above.
- Professional installation is highly recommended (No Instruction Included).
- For any needs please contact us.

Introduction

A turbocharger (also called turbo), is a turbine-driven forced induction device that increases an internal combustion engine’s efficiency and power output by forcing extra air into the combustion chamber. The key difference between a turbocharger and a conventional supercharger is precisely that a turbocharger is powered by a turbine driven by the engine's exhaust gas. A turbo consists of a compressor, a cartridge, a turbine and an exhaust valve. Maxpeedingrods provides turbochargers to enhance overall engine performance compatible for Mitsubishi series.
