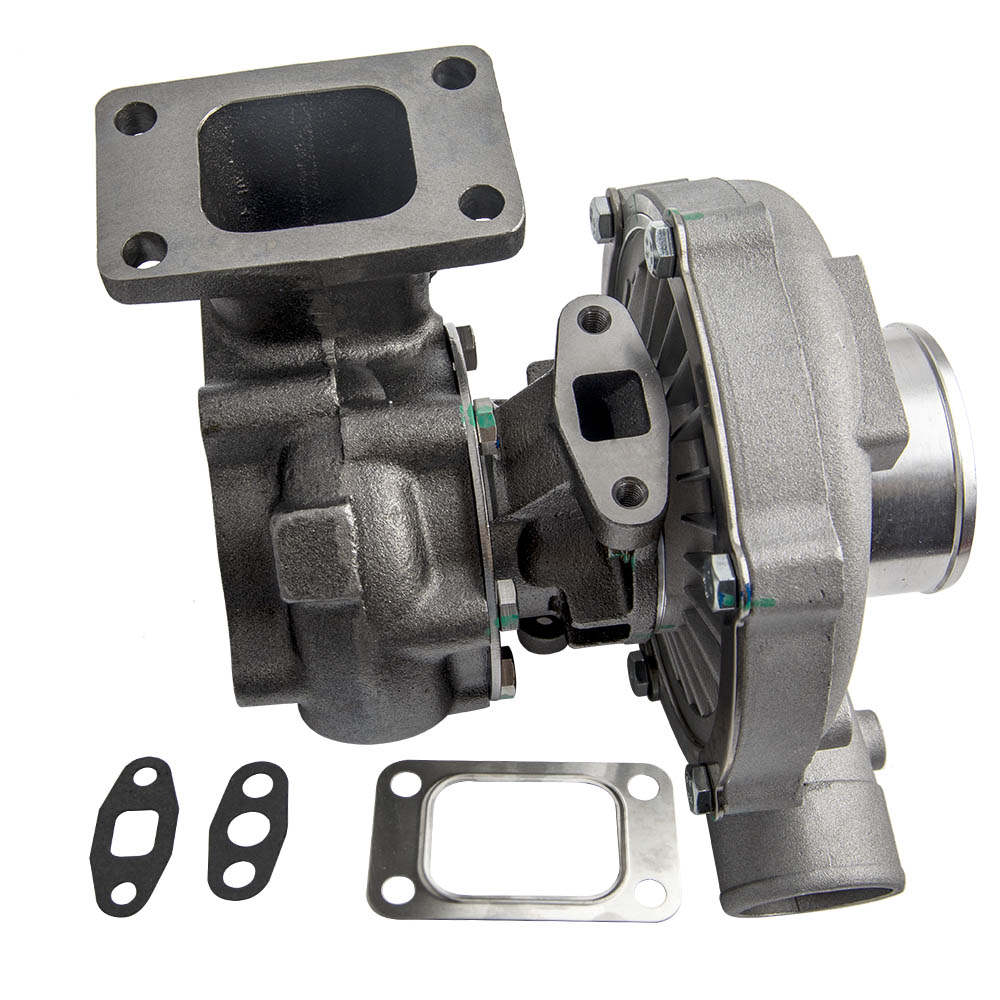

Universal Street Turbocharger T3 T4 T04E for 2.5L-3.5L Engine Turbine Trim 73

Application

Perfect for all 2.5L-3.5L engines

Horse Power: Capable of Boosting Horse Power up to 400+ HP

Specification

Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns

Exhaust Outlet (Downpipe) Flange: 5 bolt Flange

Turbine Trim: 74.2

Turbine Inducer Diameter:  64.8mm

Turbine Exducer Diameter: 55.8mm

Turbine A/R: 0.57

Compressor Trim: 48.1

Compressor Inducer Diameter: 52.7 mm

Compressor Exducer Diameter: 76 mm

Compressor A/R: 0.5

Bearing: Wet Float Bearing

Cooling Type: Oil Cooled

Warranty: one year

Horse Power: Capable of Boosting Horse Power up to 400+ HP

Features

-High Quality Material, Cast Housing with Durable Steel

-Boost Engine Horsepower Significantly

-Increase Engine Power and Torque Outpout

-Maintain Combustion Chamber Pressure and Fuel/Air Load

-Built for Durability and Strength

Advantage

1、100% BALANCING TEST: This Turbocharger you will receive has been balanced using the VSR machine technology.

2、Steel Turbine Wheel: Made from the the special K419 alloy to achieve stability under high temperatures up to 1000℃.

Turbine housing: Silicon-Molybdenum turbine housing with high-temperature resistance 850℃.

3、Compressor wheel/blades:

- Aluminum blades with precision machining forging. The light weight design enables reduced noise and increased response without compromising comfort or longevity, so the spool time is very short, the delay is small, and the linearity is great.

- The impeller is colored by five-axis milling, the shape of the blade is more perfect, and the precision is higher.

4、Warranty: one year warranty for any manufacturing defect.

Notice

* About the color of the turbine compressor shell impeller: We will ship gold and silver at random, thank you.

* Please check the specifications carefully before placing orders. If you are not sure about these information, please feel free to contact us.

* This is an aftermarket application turbo, so modification might be required for some vehicles.

* Professional installation is highly recommended (No Instruction Included).
