T3 T4 TO4E Turbo Turbocharger Kit + Oil Drain Return + Oil FEED Line Kit

Description

A turbocharger, (or turbo), is a turbine-driven forced induction device that increases an internal combustion engine's efficiency and power output by forcing extra air into the combustion chamber.
The objective of a turbocharger is to improve an engine's volumetric efficiency by increasing density of the intake gas (usually air) allowing more power per engine cycle.
Maxpeedingrods provide the highest quality Turbocharger.

Application

Compatible for 1.5L to 2.5L any 4/6 cylinder engine

Capable of Boosting Horse Power up to 420HP

Specification

Cooling Type: Oil Cooled

Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns

Exhaust Outlet (Downpipe) Flange: V-Band Flange

Compressor

Trim: 48.1

Inducer Diameter: 52.7mm

Exducer Diameter: 76 mm

A/R: 0.5

Turbine

Trim: 74.2

Inducer Diameter: 64.8 mm

Exducer Diameter: 55.8mm

A/R: 0.63

Additional Details:

Bearing: Wet Float

Warranty: one year

Internal Wastegate: Yes

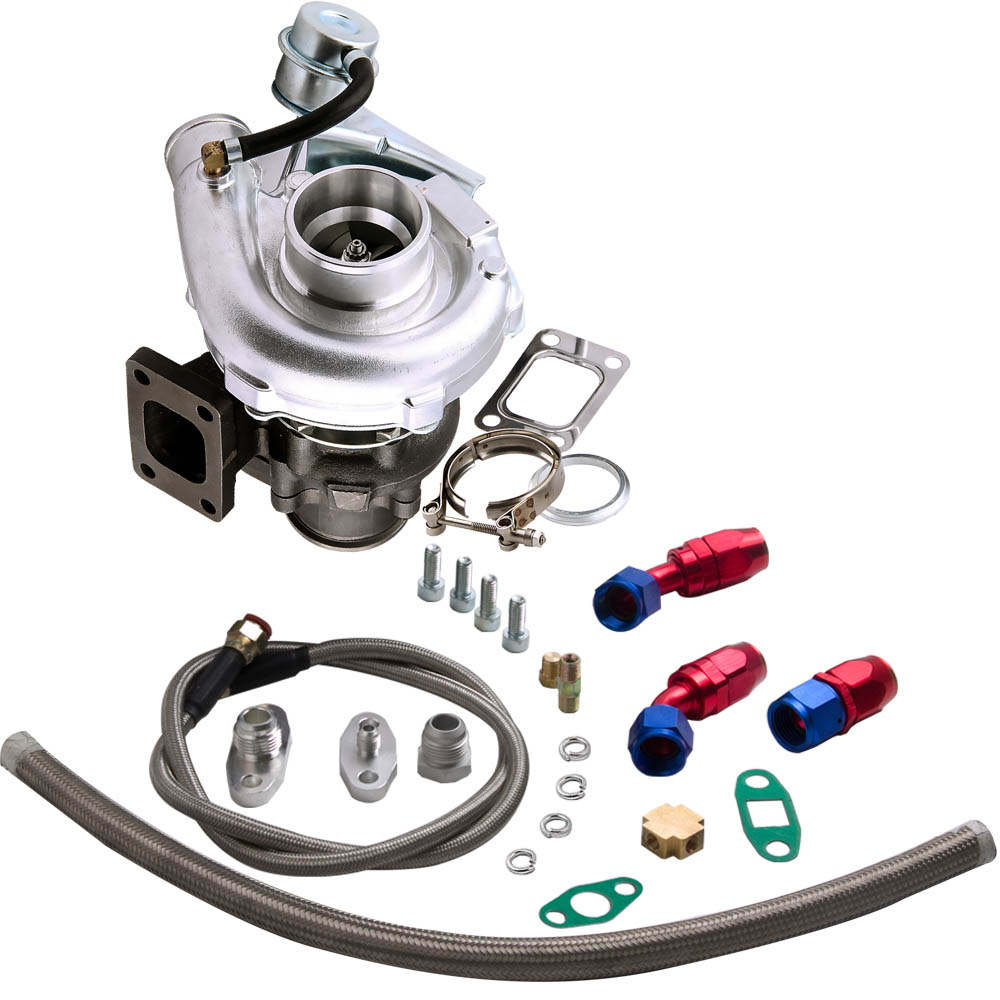

Accessories: You will get exactly as shown in the picture above

Oil Specifications:
OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm
​OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm

Condition: 100% Brand New
Bearing Type: Floating Bearing
Accessories: You will get exactly as shown in the picture above

Notice

Professional installation is highly recommended (No Instruction Included)
For any needs please contact us
This is universal application turbo, so modification might be required for some vehicles
