Air Con Conditioning Hose Pipe compatible for Ford Galaxy WGR 1.9TDI ANU 1995-2006

Application

134A Barb Fitting Hose Kit

Specification

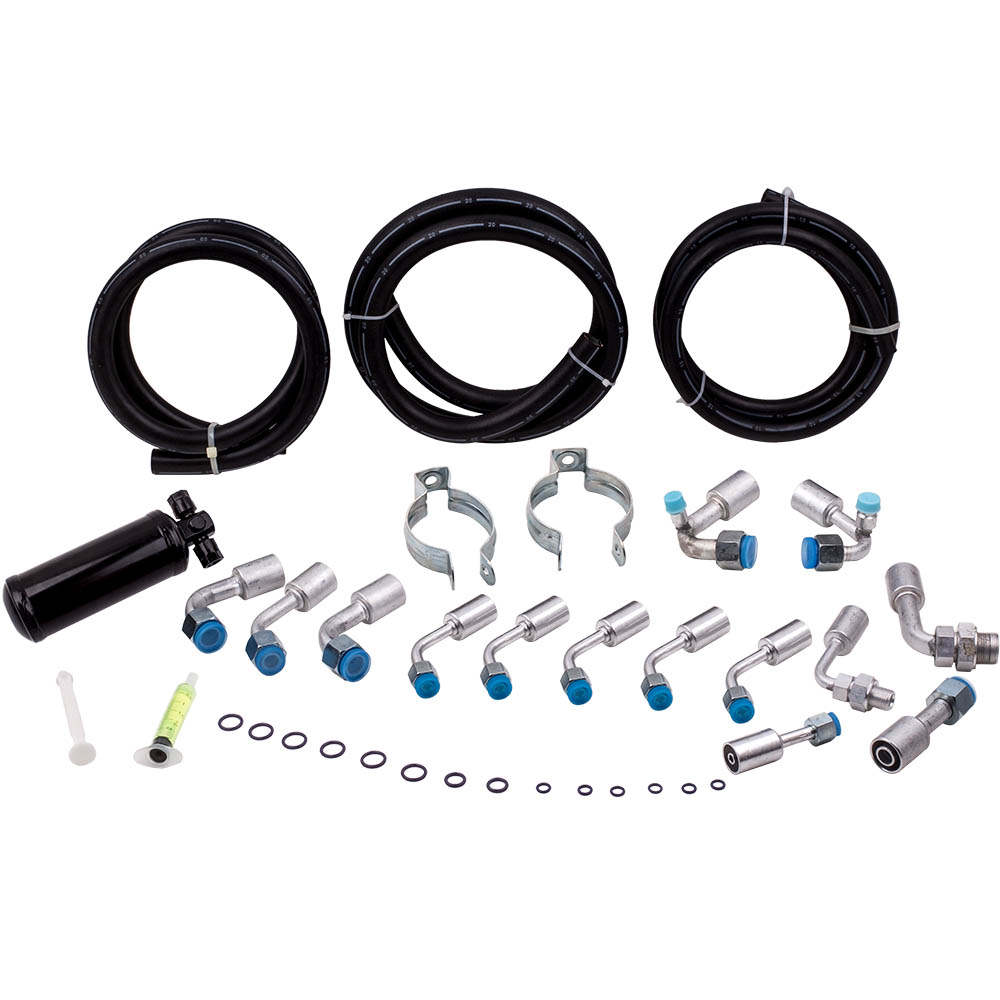

Package include
1x 6ft Hose（diameter 16*1.5mm）
1x 4ft Hose（diameter 22*1.5mm）
1x 5ft Hose（diameter 24*1.5mm）
1x Black Drier w/ Clamp
1x Beadlock Fitting 135 Degree w/ Service Port（diameter 22*1.5mm）
1x Beadlock Fitting 135 Degree w/ Service Port（diameter 24*1.5mm）
1x Beadlock Fitting Straight（diameter 16*1.5mm）
1x Beadlock Fitting Straight（diameter 24*1.5mm）
2x Beadlock Fitting 45 Degree（diameter 16*1.5mm）
1x Beadlock Fitting 45 Degree（diameter 22*1.5mm）
3x Beadlock Fitting 90 Degree（diameter 16*1.5mm）
2x Beadlock Fitting 90 Degree（diameter 24*1.5mm）
1x Beadlock Fitting Bulkhead 90 Degree（diameter 16*1.5mm）
1x Beadlock Fitting Bulkhead 90 Degree（diameter 24*1.5mm）

Size:

Metric screw connections:

6 # 16 * 1.5

8 # 22 * 1.5

10 # 24 * 1.5

Inch screw connection:

6 # 3/8 O-Ring Fitting, Outside Diameter: 8.4MM.

8 # 1/2 O-ring fitting, outside diameter: 11.4MM

10 # 5/8 O-ring fitting, outside diameter: 14.5MM

Note

* Please check your installation measurement before purchasing.

* 100% Brand new.

* Professional installation is highly recommended.

* Instruction not Included.

* For any needs please contact us.
