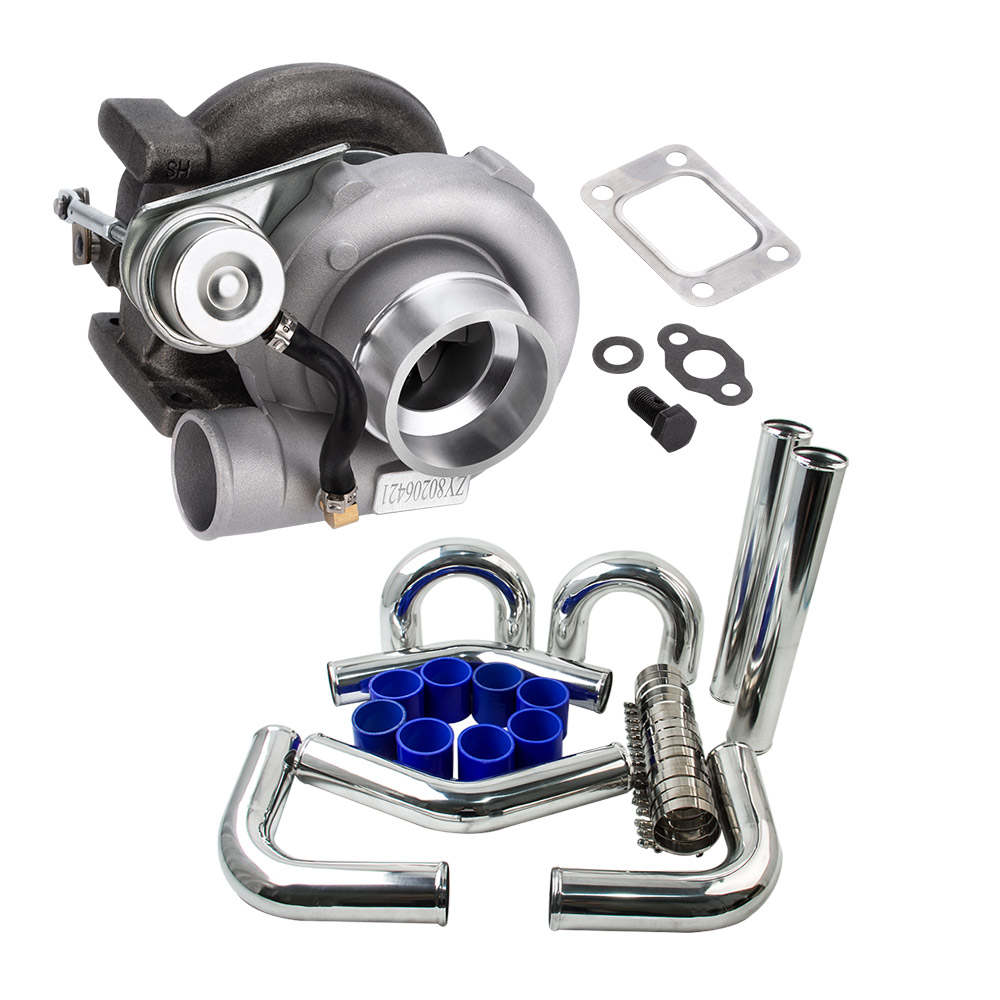

Universal GT2871 Turbocharger Water Cold +3 inch Intercooler Piping pipe Clamps
Regular price
$520.55 AUD
Regular price
$676.72 AUD
Sale price
$520.55 AUD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Application
Perfect for all 1.5L-2.0L engine，for all 4 cylinder
Horse Power: Boost Horse Power up to 350BHP
Specification
Turbo
Exhaust Inlet (Turbo Manifold) Flange: Standard T25 Flange
Exhaust Outlet (Downpipe) Flange: 5-Bolt
Turbine Trim: 76
Turbine A/R: 0.64
Turbine Inducer Diameter: 53.8mm
Turbine Exducer Diameter: 47mm
Compressor Trim: 48
Compressor A/R: 0.60
Compressor Inducer Diameter: 49.2mm
Compressor Exducer Diameter: 71 mm
Bearing Type: Wet Float
Cooling Type: Water + Oil
Internal Wastegate: Yes
Warranty: one year for any manufacture defects
Oil Restrictor: Yes
Oil Restrictor size：inside diameter 2mm
Oil Thread Size: M8*1.25
Water Thread Size: M14*1.5
Horse Power: Boost Horse Power up to 350BHP
Exhaust Outlet (Downpipe) Flange: 5-Bolt
Turbine Trim: 76
Turbine A/R: 0.64
Turbine Inducer Diameter: 53.8mm
Turbine Exducer Diameter: 47mm
Compressor Trim: 48
Compressor A/R: 0.60
Compressor Inducer Diameter: 49.2mm
Compressor Exducer Diameter: 71 mm
Bearing Type: Wet Float
Cooling Type: Water + Oil
Internal Wastegate: Yes
Warranty: one year for any manufacture defects
Oil Restrictor: Yes
Oil Restrictor size：inside diameter 2mm
Oil Thread Size: M8*1.25
Water Thread Size: M14*1.5
Horse Power: Boost Horse Power up to 350BHP
Piping Pipe Kit
Pipe length: 19.68''(500mm)
100% brand new Never been tried or installed.
100% quality assurance tested
Made out of high quality of 6061 aluminum Manual polishing finished
100% quality assurance tested
Made out of high quality of 6061 aluminum Manual polishing finished
Condition: Brand New
Notice
* Please check the specifications carefully before ordering. If you are not sure about these information, please feel free to contact us
* This is universal application turbo, so modification might be required for some vehicles
* This is universal application turbo, so modification might be required for some vehicles
* Professional installation is highly recommended (No Instruction Included)
