Universal T25 T28 Turbocharger amp; 3 inch 76mm Intercooler Piping pipe Blue hose Kits
Regular price
$513.30 AUD
Regular price
$667.29 AUD
Sale price
$513.30 AUD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Application
Perfect for all 1.5L-2.0L engine，for all 4 cylinder
Horse Power: Boost Horse Power up to 350BHP
This is a universal application turbo Kit. some modification may be required based on individual vehicle. The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.
Specification

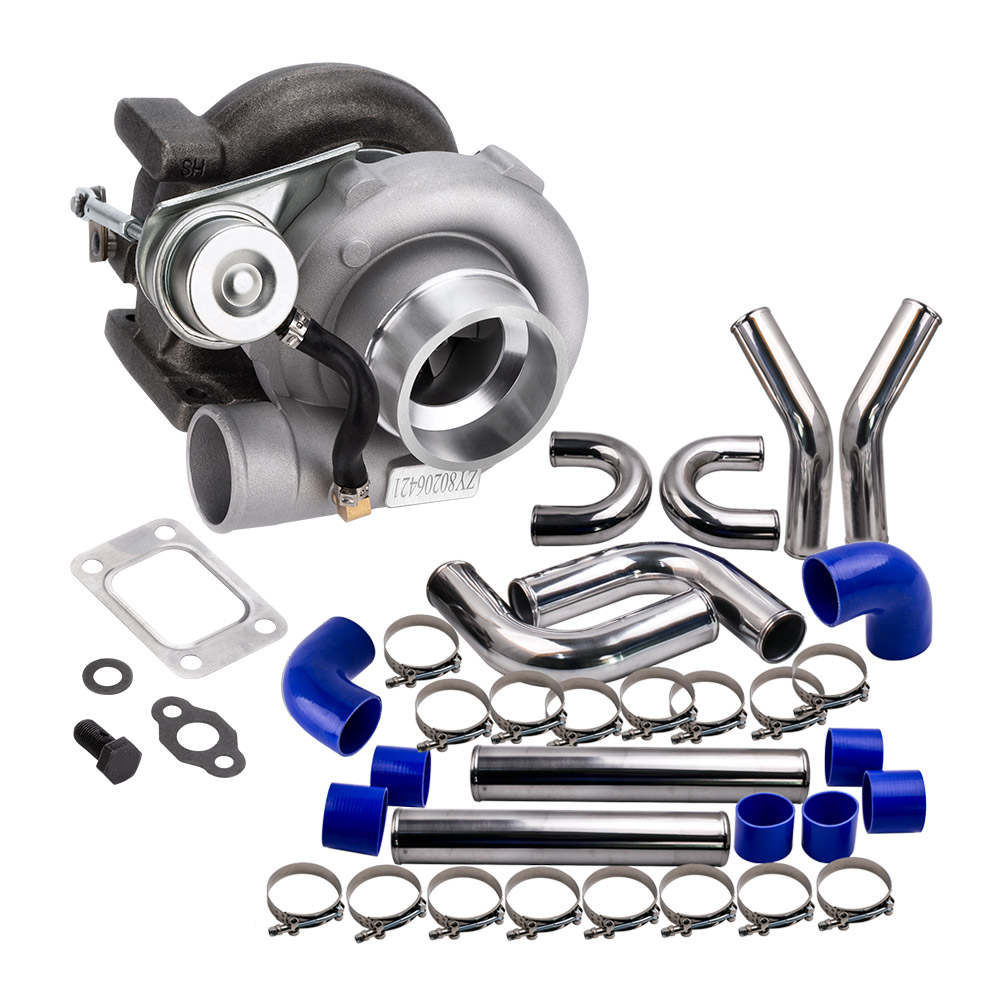

Package Including
1x Turbo and gaskets
2x 90 Degree Aluminum Pipe 3"
2x Straight aluminum pipe 3"
2x 45 Degree Aluminum Pipe 3"
2x U Aluminum Pipe 3"
8 x high tempature silicone hose: (6x straight, 2 x 90degree) Blue
16x T-bolt Clamps
2x Straight aluminum pipe 3"
2x 45 Degree Aluminum Pipe 3"
2x U Aluminum Pipe 3"
8 x high tempature silicone hose: (6x straight, 2 x 90degree) Blue
16x T-bolt Clamps
Turbo
Exhaust Inlet (Turbo Manifold) Flange: Standard T25 Flange
Exhaust Outlet (Downpipe) Flange: 5-Bolt
Turbine Trim: 76
Turbine A/R: 0.64
Turbine Inducer Diameter: 53.8mm
Turbine Exducer Diameter: 47mm
Compressor Trim: 48
Compressor A/R: 0.60
Compressor Inducer Diameter: 49.2mm
Compressor Exducer Diameter: 71 mm
Bearing Type: Wet Float
Cooling Type: Water + Oil
Internal Wastegate: Yes
Warranty: one year for any manufacture defects
Oil Restrictor: Yes
Oil Restrictor size：inside diameter 2mm
Oil Thread Size: M8*1.25
Water Thread Size: M14*1.5
Horse Power: Boost Horse Power up to 350BHP
Exhaust Outlet (Downpipe) Flange: 5-Bolt
Turbine Trim: 76
Turbine A/R: 0.64
Turbine Inducer Diameter: 53.8mm
Turbine Exducer Diameter: 47mm
Compressor Trim: 48
Compressor A/R: 0.60
Compressor Inducer Diameter: 49.2mm
Compressor Exducer Diameter: 71 mm
Bearing Type: Wet Float
Cooling Type: Water + Oil
Internal Wastegate: Yes
Warranty: one year for any manufacture defects
Oil Restrictor: Yes
Oil Restrictor size：inside diameter 2mm
Oil Thread Size: M8*1.25
Water Thread Size: M14*1.5
Horse Power: Boost Horse Power up to 350BHP
Piping Pipe Kit
Pipe Thickness: 1.8mm
Pipe length: 18''
Condition: Brand New
Notice
* Please check the specifications carefully before ordering. If you are not sure about these information, please feel free to contact us
* This is universal application turbo, so modification might be required for some vehicles
* This is universal application turbo, so modification might be required for some vehicles
* Professional installation is highly recommended (No Instruction Included)
