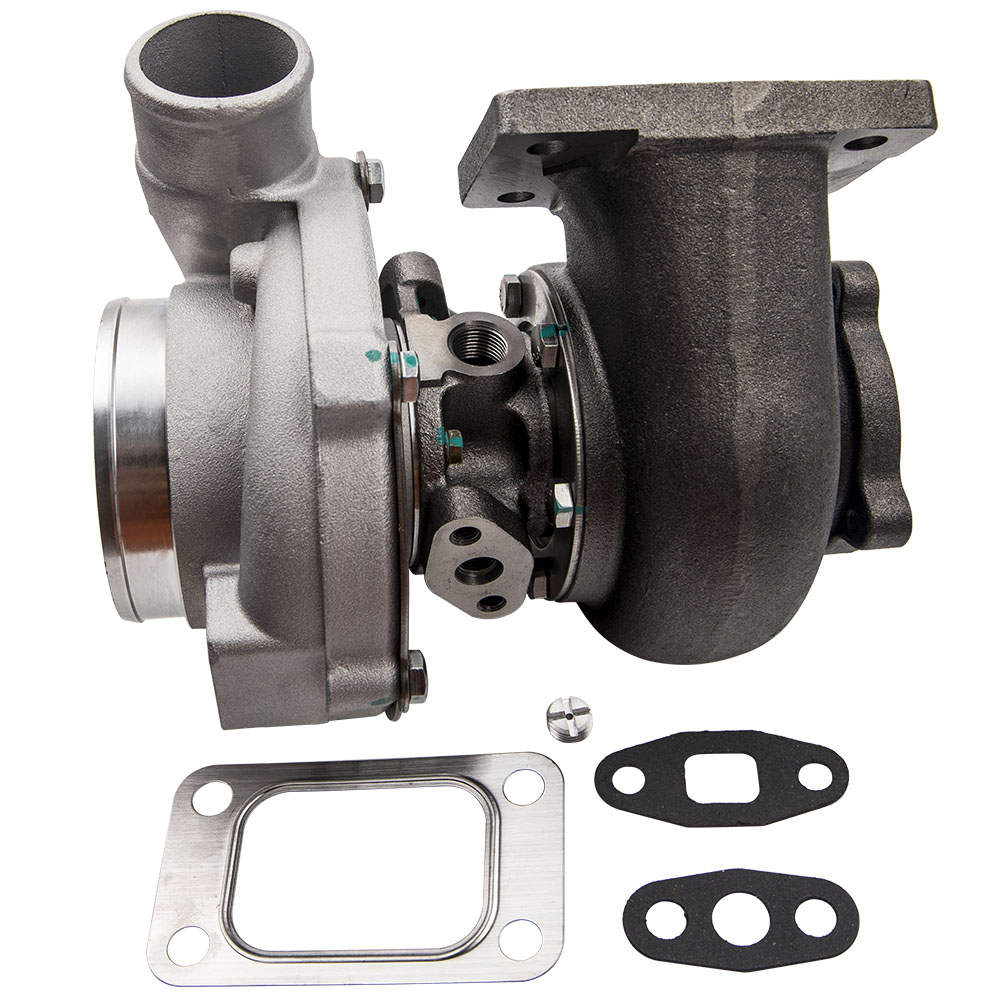

Street turbo GT3076R GT3037 T3 Water and Oil cooling Turbocharger for 3.0L-5.0L

Application

Perfect for all 6 / 8 cyl 3.0L-5.0L engines

Horse Power: Boost Horse Power up to 600HP

Specification

Exhaust Inlet (Turbo Manifold) Flange: Standard T3 Flange
Exhaust Outlet (Downpipe) Flange: Standard 4-Bolt
Turbine Trim: 74.2
Turbine A/R: 0.82
Turbine Inducer Diameter: 64.8mm
Turbine Exducer Diameter: 55.8mm
Compressor Trim: 48.1
Compressor A/R: 0.6
Compressor Air Inlet Size: 54mm
Compressor Air outlet Size: 71mm
Compressor Inducer Diameter: 52.7mm
Compressor Exducer Diameter: 76mm
Oil Hole Size:W8*1.25/50.7
Bearing Type: Wet Float
Cooling Type: Oil
Internal Wastegate: Yes
Warranty: one year for any manufacture defects

Features

（1）Street-performance turbocharger with higher performance than OEM one.

（2）Turbine housing：Silicon-Molybdenum turbine housing with high-temperature resistance 850℃.

（3）Turbine Wheel uses the special K419 alloy to achieve stability under high temperatures up to 1000 degrees Celsius.

（4）Compressor wheel/blades:

- Aluminum blades with precision machining forging. The light weight design enables reduced noise and increased response without compromising comfort or longevity, so the spool time is very short, the delay is small, and the linearity is great.

- The impeller is colored by five-axis milling, the shape of the blade is more perfect, and the precision is higher.

（5）This Turbocharger you will receive has been balanced using the VSR machine technology.

Only the VSR machine measures imbalance to the speeds necessary to be an effective test, If this balancing process is not carried out, the result can be a turbo which will be noisy in operation and is very likely to suffer failure prematurely.

（6）Compressor housing：ZL104 aluminum.

Notice

*About the color of the turbine compressor shell impeller: We will ship gold and silver at random, thank you.
* Please check the specifications carefully before buying. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles.
* Professional installation is highly recommended (No Instruction Included).
