GT45 Turbocharger T4 V-BAND 78Trim 600+HP Boost+Oil Feed /Oil Drain Return Line

Application

Perfect for all 3.0L-6.0L engine

Specification

Exhaust (Turbo Manifold) Flange : T4 4 Bolt Flange
Exhaust (Downpipe) Flange: V-Band Flange
Wastegate: External Wastegate
Horse Power: Boost Horse Power up to 600+ BHP
Turbo Height: 243cm
Turbo Width: 273cm
Compressor:
Trim: 50
Inducer Diamter: 69 mm
Exducer Diamter: 98mm
A/R: 0.66

Turbine:
Trim: 78
Inducer Diamter: 88 mm
Exducer Diamter: 77.5 mm
A/R: 1.05

36" Stainless Steel Braided Oil Feed Line

Length: 36.00"
Inner Diameter: 0.25"
10AN Fittings Anodized Ends
CNC Machined Turbo Adapter Plate
Stainless Steel Hose, Braided for Heat & Pressure

Condition: 100% Brand New
Bearing Type: Floating Bearing

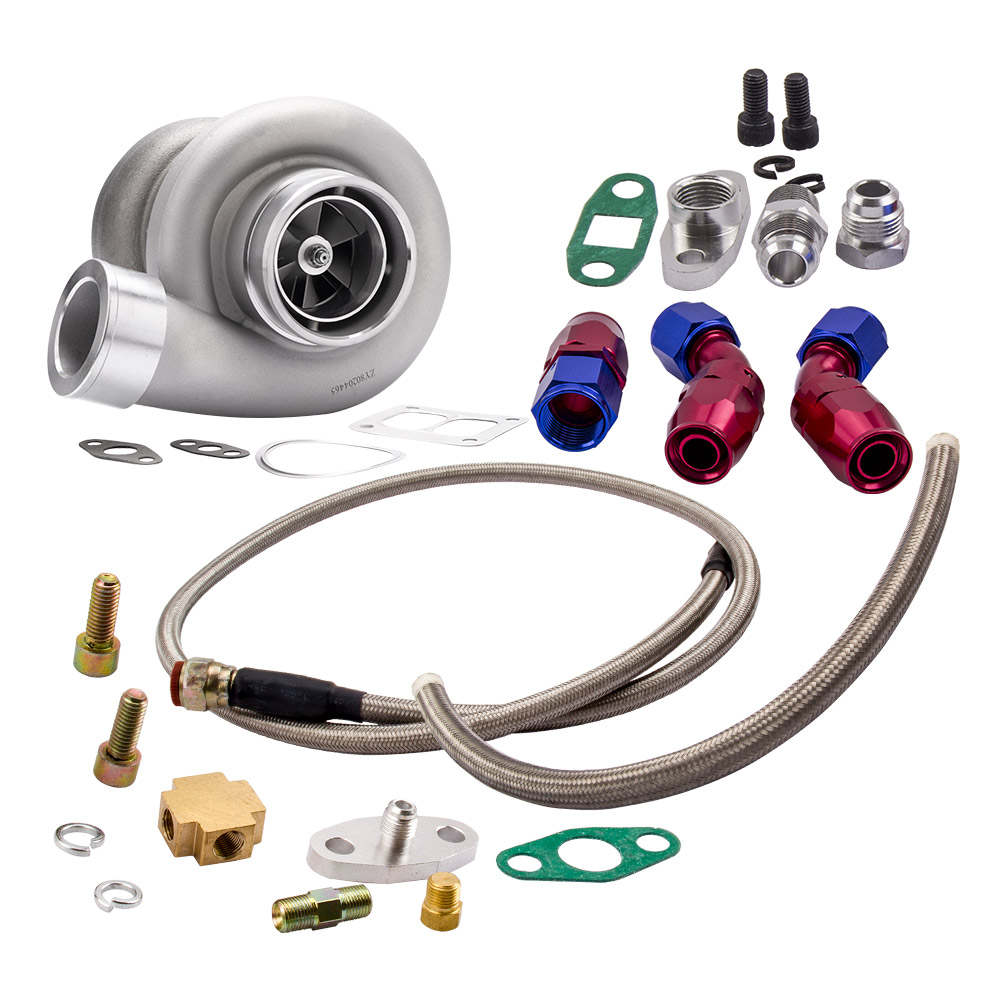

Accessories: You will get exactly as shown in the picture above

Turbo Oil Drain Return Line

 Fit for T3 T4 T3/T4 T70 T60 T61 T66 TO4E Turbo Oil Return Line Kit

 Oil return line length: 550mm

 Oil return line inner diameter: ¢21

 Hose end fitting: 10 AN

 Item condition: 100% Brand New

 Material: High Strength Steel with Aluminum Material

 Quantity: Comes with gasket, fitting, screws, etc. Exactly the same as shown in the picture

Notice

 This is a universal kit. Not all the component parts will be directly bolt on your car. You may still need some accessaries of your OEM oil line kit.
