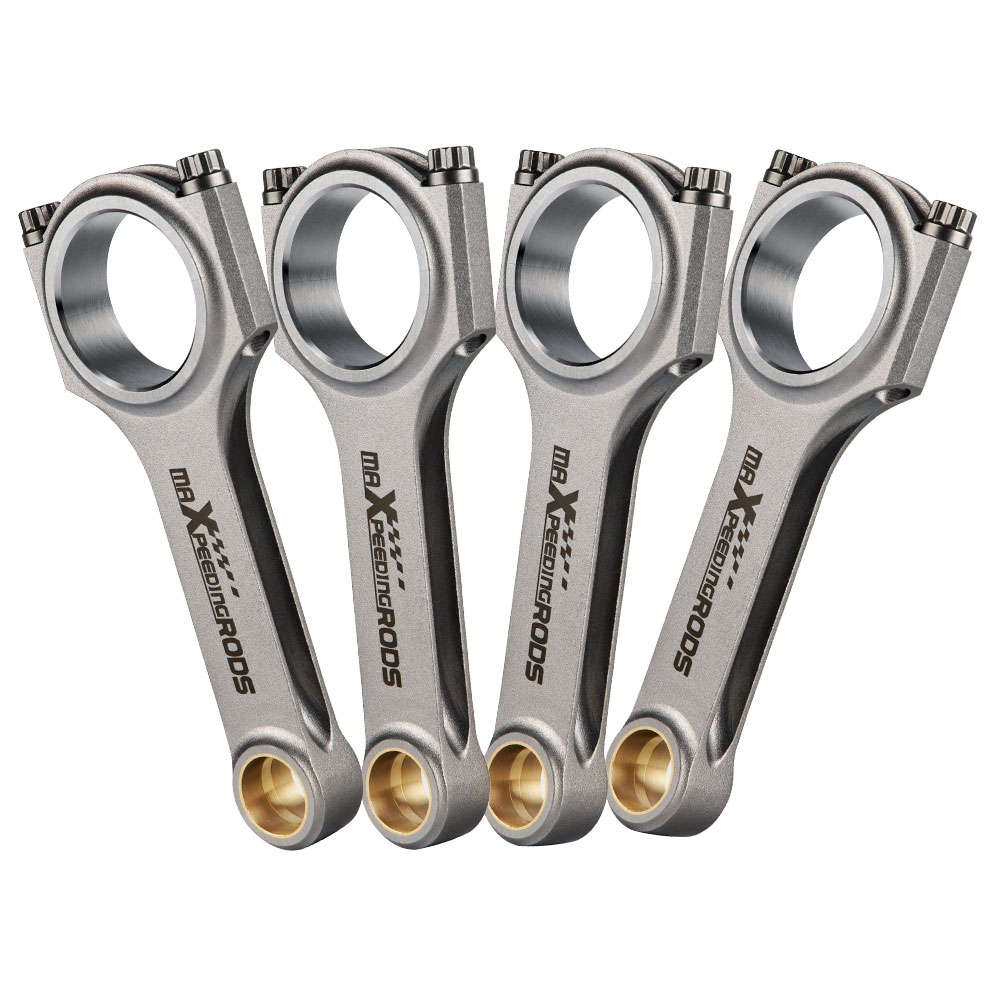

Compatible for Yamaha YZF-R1 R1 98-03 ARP 2000 Pleuel Bielle H-Beam Connecting Rod Conrod Con Rods

Application

Compatible for Yamaha YZF-R1 R1 98-03 ARP 2000 Pleuel Bielle

Specification

TÜV Certification Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 4 Pieces a set
Bolts:Including ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: Genuine ARP 2000 5/16" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 7000rpm
warranty: one year warranty for any manufacturing defect

Dimensions

Center to center length: 110.5mm
Big end diameter: 39mm
Small end diameter: XX
Big end width: XX
Small end width: XX

Feature

-Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
-Designed and processed by CNC machine.
-All big and small ends are finished with SUNNEN honing machine
-Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
-100% X-rayed, sonic tested and magnafluxed
-Multi-stage heat treated
-Shot peened to relieve stress
-Come with the bronzed bushing suitable for the floating piston pin

Note

Professional installation is highly recommended (No Instruction Included)
